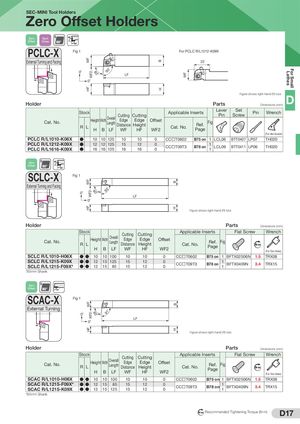

SEC-MINI Tool Holders Zero Offset Holders Zero Back 95˚ Offset Clamp 95˚ PCLC-X Fig 1 For PCLC R/L1212-K09X WF External Turning and Facing 22 B For Small ˚ 0˚ 95 WF2 Lathes 80 WF LF ˚ 0˚ HF H Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) D Lever Set Stock Applicable Inserts Pin Wrench Cutting Cutting Pin Screw Overall Edge Edge Cat. No. Height Width Offset Fig Length Distance Height Ref. R L Cat. No. H B LF WF HF WF2 Page (For Hex Socket) PCLC R/L1010-K06X ● 10 10 125 10 10 0 CC□T0602 B75 on 1 LCL06 BTT0407 LP07 TH020 PCLC R/L1212-K09X ● 12 12 125 15 12 0 1 CC□T09T3 B78 on LCL09 BTT0411 LP06 TH020 PCLC R/L1616-K09X ● 16 16 125 16 16 0 1 Zero 95˚ Offset 95˚ SCLC-X Fig 1 WF B External Turning and Facing 80 ˚ 95 WF2 0˚ ˚ LF 0˚ HF H Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Offset Length Distance Height Ref. Fig R L Cat. No. Nm H B LF WF HF WF2 Page (For Torx Holes) SCLC R/L1010-H06X ● ● 10 10 100 10 10 0 CC□T0602 B75 on 1 BFTX02506N 1.5 TRX08 SCLC R/L1215-K09X ● ● 12 15 125 15 12 0 1 CC□T09T3 B78 on BFTX0409N 3.4 TRX15 SCLC R/L1215-F09X* ● ● 12 15 85 15 12 0 1 *85mm Shank Zero Offset 91˚ SCAC-X Fig 1 WF B External Turning ˚ 91 0˚ WF2 80 ˚ LF 0˚ HF H Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Offset Ref. Fig R L Length Distance Height Cat. No. Nm Page H B LF WF HF WF2 (For Torx Holes) SCAC R/L1010-H06X ● ● 10 10 100 10 10 0 CC□T0602 B75 on 1 BFTX02506N 1.5 TRX08 SCAC R/L1215-F09X* ● ● 12 15 85 15 12 0 1 CC□T09T3 B78 on BFTX0409N 3.4 TRX15 SCAC R/L1215-K09X ● ● 12 15 125 15 12 0 1 *85mm Shank N m Recommended Tightening Torque (N·m) D17
