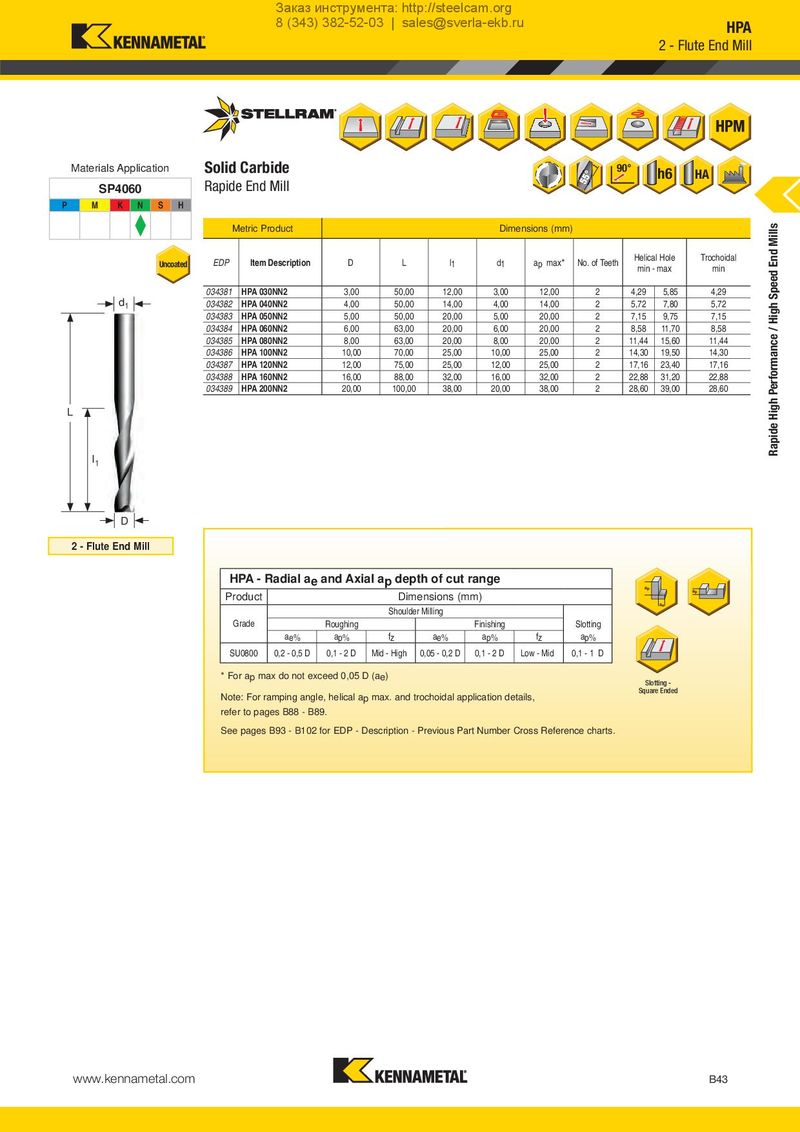

Каталог Stellram твердосплавные цельные фрезы - страница 44

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru HPA 2 - Flute End Mill Materials Application Solid Carbide 90° h6 HA SP4060 Rapide End Mill P M K N S H Metric Product Dimensions (mm) Rapide High Performance / High Speed End Mills Uncoated EDP Item Description D L l1 d1 ap max* No. of Teeth Helical Hole Trochoidal min - max min 034381 HPA 030NN2 3,00 50,00 12,00 3,00 12,00 2 4,29 5,85 4,29 d1 034382 HPA 040NN2 4,00 50,00 14,00 4,00 14,00 2 5,72 7,80 5,72 034383 HPA 050NN2 5,00 50,00 20,00 5,00 20,00 2 7,15 9,75 7,15 034384 HPA 060NN2 6,00 63,00 20,00 6,00 20,00 2 8,58 11,70 8,58 034385 HPA 080NN2 8,00 63,00 20,00 8,00 20,00 2 11,44 15,60 11,44 034386 HPA 100NN2 10,00 70,00 25,00 10,00 25,00 2 14,30 19,50 14,30 034387 HPA 120NN2 12,00 75,00 25,00 12,00 25,00 2 17,16 23,40 17,16 034388 HPA 160NN2 16,00 88,00 32,00 16,00 32,00 2 22,88 31,20 22,88 034389 HPA 200NN2 20,00 100,00 38,00 20,00 38,00 2 28,60 39,00 28,60 L I1 D 2 - Flute End Mill HPA - Radial ae and Axial ap depth of cut range ap Product Dimensions (mm) ap ae Shoulder Milling Grade Roughing Finishing Slotting ae% ap% fz ae% ap% fz ap% SU0800 0,2 - 0,5 D 0,1 - 2 D Mid - High 0,05 - 0,2 D 0,1 - 2 D Low - Mid 0,1 - 1 D * For ap max do not exceed 0,05 D (ae) Slotting - Note: For ramping angle, helical ap max. and trochoidal application details, Square Ended refer to pages B88 - B89. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. www.kennametal.com B43
