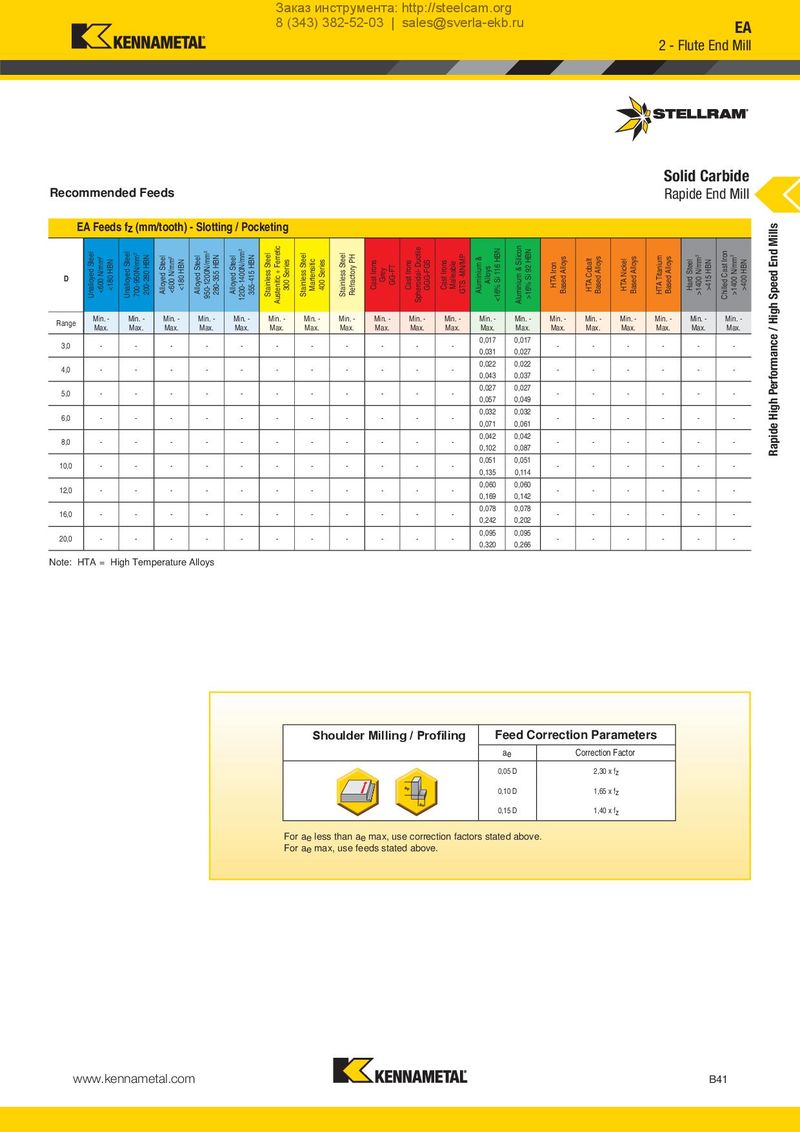

Каталог Stellram твердосплавные цельные фрезы - страница 42

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru EA 2 - Flute End Mill Solid Carbide Recommended Feeds Rapide End Mill EA Feeds fz (mm/tooth) - Slotting / Pocketing High Speed End Mills D Unalloyed Steel <600 N/mm2 <180 HBN Unalloyed Steel 700-950N/mm2 200-280 HBN Alloyed Steel <600 N/mm2 <180 HBN Alloyed Steel 950-1200N/mm2 280-355 HBN Alloyed Steel 1200-1400N/mm2 355-415 HBN Stainless Steel Austenitic + Ferretic 300 Series Stainless Steel Martensitic 400 Series Stainless Steel Refractory PH Cast Irons Grey GG-FT Cast Irons Spheroidal- Ductile GGG-FGS Cast Irons Malleable GTS -MN/MP Aluminium & Alloys <16% Si 116 HBN Aluminium & Silicon >16% Si 92 HBN HTA Iron Based Alloys HTA Cobalt Based Alloys HTA Nickel Based Alloys HTA Titanium Based Alloys Hard Steel >1400 N/mm2 >415 HBN Chilled Cast Iron >1400 N/mm2 >400 HBN Range Min. - Min. - Min. - Min. - Min. - Min. - Min. - Min. - Min. - Min. - Min. - Min. - Min. - Min. - Min. - Min. - Min. - Min. - Min. - Max. Max. Max. Max. Max. Max. Max. Max. Max. Max. Max. Max. Max. Max. Max. Max. Max. Max. Max. / 3,0 - - - - - - - - - - - 0,017 0,017 - - - - - - Performance 0,031 0,027 4,0 - - - - - - - - - - - 0,022 0,022 - - - - - - 0,043 0,037 5,0 - - - - - - - - - - - 0,027 0,027 - - - - - - 0,057 0,049 High 6,0 - - - - - - - - - - - 0,032 0,032 - - - - - - 0,071 0,061 Rapide 8,0 - - - - - - - - - - - 0,042 0,042 - - - - - - 0,102 0,087 10,0 - - - - - - - - - - - 0,051 0,051 - - - - - - 0,135 0,114 12,0 - - - - - - - - - - - 0,060 0,060 - - - - - - 0,169 0,142 16,0 - - - - - - - - - - - 0,078 0,078 - - - - - - 0,242 0,202 20,0 - - - - - - - - - - - 0,095 0,095 - - - - - - 0,320 0,266 Note: HTA = High Temperature Alloys Shoulder Milling / Profiling Feed Correction Parameters ae Correction Factor 0,05 D 2,30 x fz ap 0,10 D 1,65 x fz ae 0,15 D 1,40 x fz For ae less than ae max, use correction factors stated above. For ae max, use feeds stated above. www.kennametal.com B41
