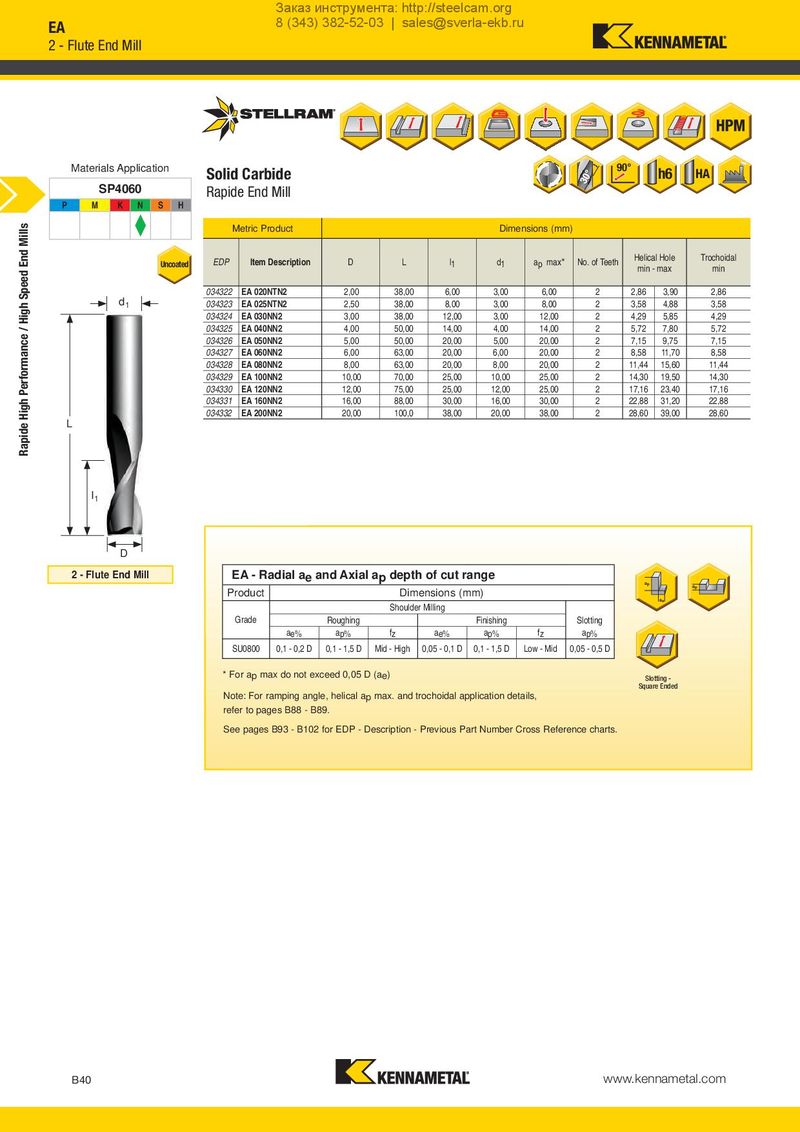

Заказ инструмента: http://steelcam.org EA 8 (343) 382-52-03 | sales@sverla-ekb.ru 2 - Flute End Mill Materials Application Solid Carbide 90° h6 HA SP4060 Rapide End Mill P M K N S H Rapide High Performance / High Speed End Mills Metric Product Dimensions (mm) Uncoated EDP Item Description D L l1 d1 ap max* No. of Teeth Helical Hole Trochoidal min - max min 034322 EA 020NTN2 2,00 38,00 6,00 3,00 6,00 2 2,86 3,90 2,86 d1 034323 EA 025NTN2 2,50 38,00 8,00 3,00 8,00 2 3,58 4,88 3,58 034324 EA 030NN2 3,00 38,00 12,00 3,00 12,00 2 4,29 5,85 4,29 034325 EA 040NN2 4,00 50,00 14,00 4,00 14,00 2 5,72 7,80 5,72 034326 EA 050NN2 5,00 50,00 20,00 5,00 20,00 2 7,15 9,75 7,15 034327 EA 060NN2 6,00 63,00 20,00 6,00 20,00 2 8,58 11,70 8,58 034328 EA 080NN2 8,00 63,00 20,00 8,00 20,00 2 11,44 15,60 11,44 034329 EA 100NN2 10,00 70,00 25,00 10,00 25,00 2 14,30 19,50 14,30 034330 EA 120NN2 12,00 75,00 25,00 12,00 25,00 2 17,16 23,40 17,16 034331 EA 160NN2 16,00 88,00 30,00 16,00 30,00 2 22,88 31,20 22,88 034332 EA 200NN2 20,00 100,0 38,00 20,00 38,00 2 28,60 39,00 28,60 L I1 D 2 - Flute End Mill EA - Radial ae and Axial ap depth of cut range ap ap Product Dimensions (mm) ae Shoulder Milling Grade Roughing Finishing Slotting ae% ap% fz ae% ap% fz ap% SU0800 0,1 - 0,2 D 0,1 - 1,5 D Mid - High 0,05 - 0,1 D 0,1 - 1,5 D Low - Mid 0,05 - 0,5 D * For ap max do not exceed 0,05 D (ae) Slotting - Square Ended Note: For ramping angle, helical ap max. and trochoidal application details, refer to pages B88 - B89. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. B40 www.kennametal.com
