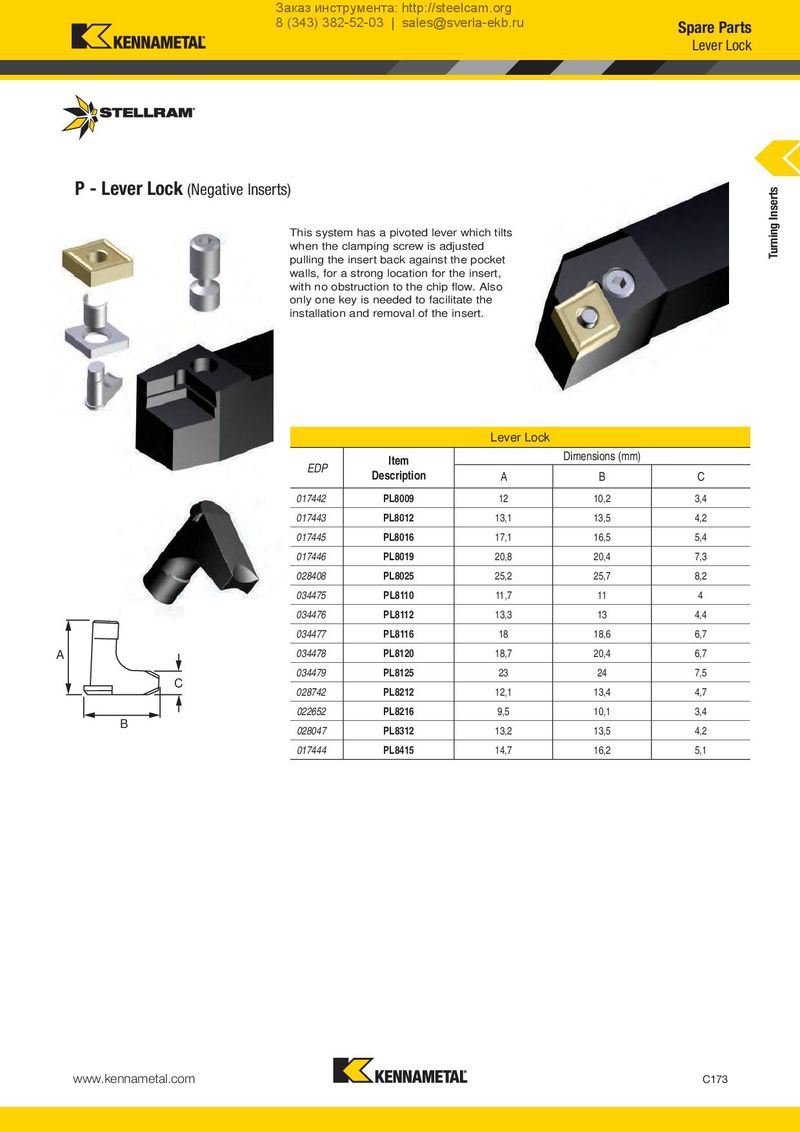

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru Spare Parts Lever Lock P - Lever Lock (Negative Inserts) Turning Inserts This system has a pivoted lever which tilts when the clamping screw is adjusted pulling the insert back against the pocket walls, for a strong location for the insert, with no obstruction to the chip flow. Also only one key is needed to facilitate the installation and removal of the insert. Lever Lock EDP Item Dimensions (mm) Description A B C 017442 PL8009 12 10,2 3,4 017443 PL8012 13,1 13,5 4,2 017445 PL8016 17,1 16,5 5,4 017446 PL8019 20,8 20,4 7,3 028408 PL8025 25,2 25,7 8,2 034475 PL8110 11,7 11 4 034476 PL8112 13,3 13 4,4 034477 PL8116 18 18,6 6,7 A 034478 PL8120 18,7 20,4 6,7 C 034479 PL8125 23 24 7,5 028742 PL8212 12,1 13,4 4,7 022652 PL8216 9,5 10,1 3,4 B 028047 PL8312 13,2 13,5 4,2 017444 PL8415 14,7 16,2 5,1 www.kennametal.com C173
