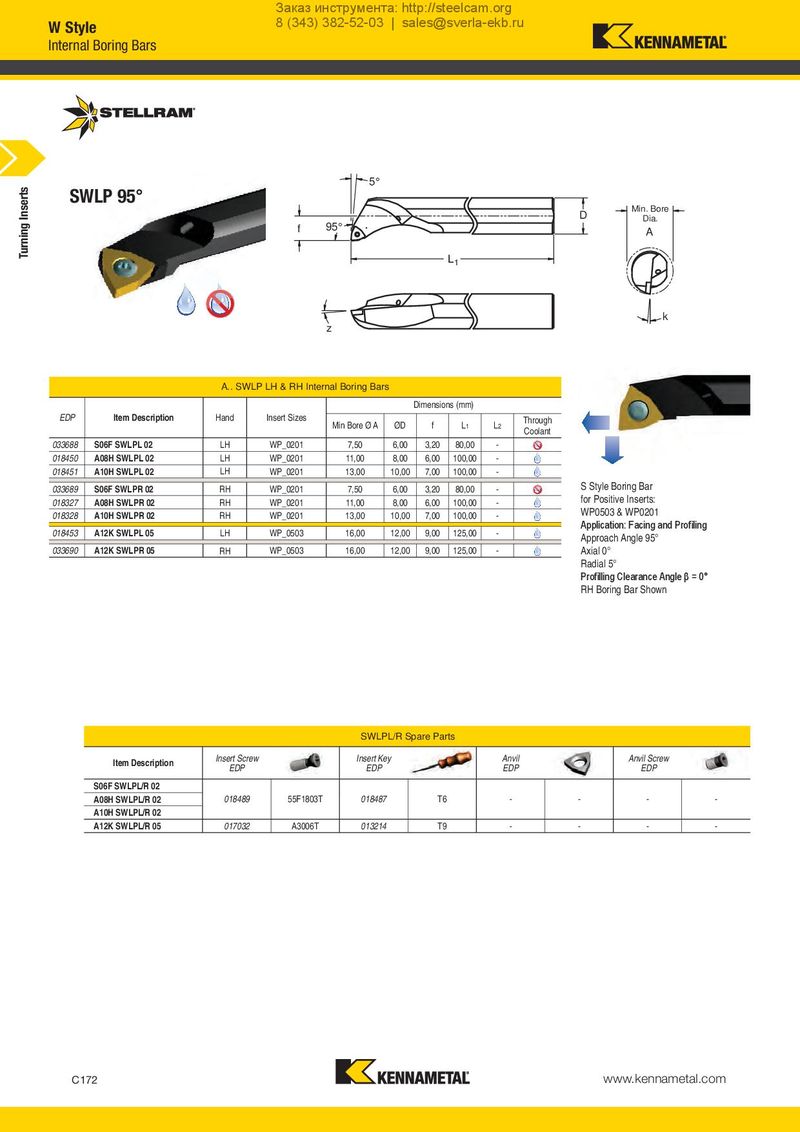

Заказ инструмента: http://steelcam.org W Style 8 (343) 382-52-03 | sales@sverla-ekb.ru Internal Boring Bars Turning Inserts 5° SWLP 95° Min. Bore D Dia. f 95° A L1 k z A.. SWLP LH & RH Internal Boring Bars Dimensions (mm) EDP Item Description Hand Insert Sizes Min Bore Ø A ØD f L1 L2 Through Coolant 033688 S06F SWLPL 02 LH WP_0201 7,50 6,00 3,20 80,00 - 018450 A08H SWLPL 02 LH WP_0201 11,00 8,00 6,00 100,00 - 018451 A10H SWLPL 02 LH WP_0201 13,00 10,00 7,00 100,00 - 033689 S06F SWLPR 02 RH WP_0201 7,50 6,00 3,20 80,00 - S Style Boring Bar 018327 A08H SWLPR 02 RH WP_0201 11,00 8,00 6,00 100,00 - for Positive Inserts: 018328 A10H SWLPR 02 RH WP_0201 13,00 10,00 7,00 100,00 - WP0503 & WP0201 018453 A12K SWLPL 05 LH WP_0503 16,00 12,00 9,00 125,00 - Application: Facing and Profiling Approach Angle 95° 033690 A12K SWLPR 05 RH WP_0503 16,00 12,00 9,00 125,00 - Axial 0° Radial 5° Profilling Clearance Angle β = 0° RH Boring Bar Shown SWLPL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP S06F SWLPL/R 02 A08H SWLPL/R 02 018489 55F1803T 018487 T6 - - - - A10H SWLPL/R 02 A12K SWLPL/R 05 017032 A3006T 013214 T9 - - - - C172 www.kennametal.com
