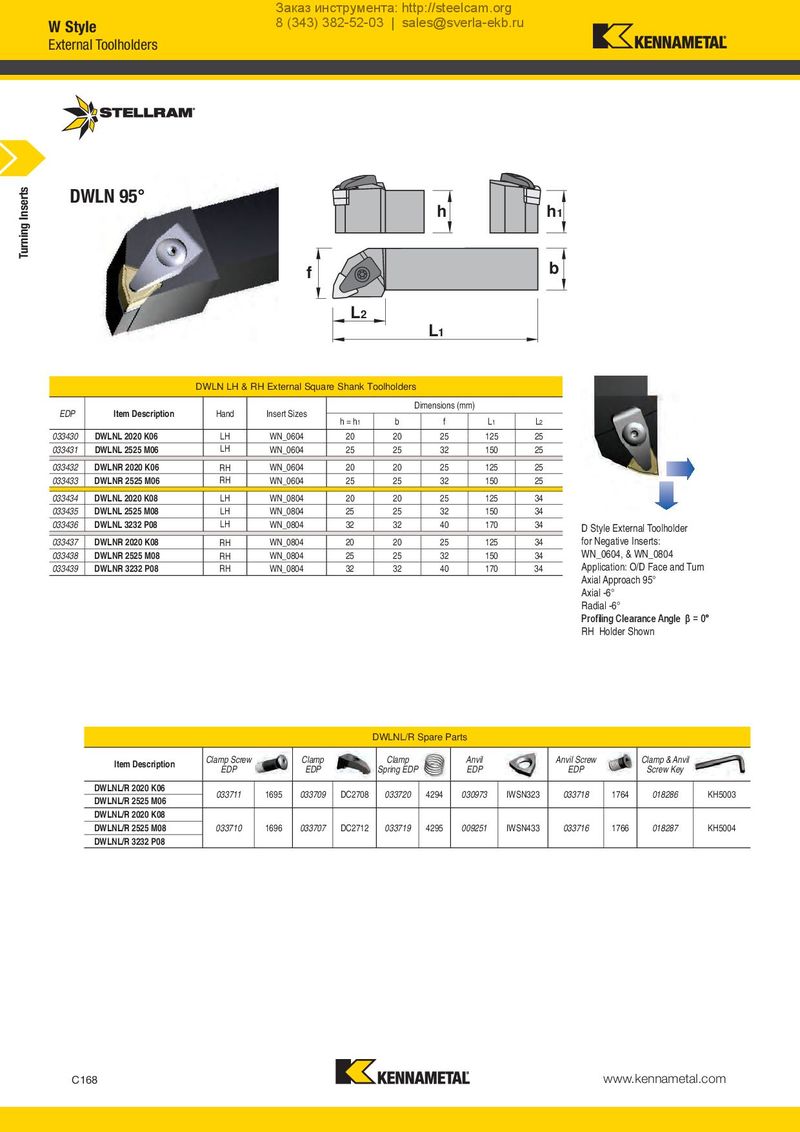

Каталог Stellram токарный инструмент - страница 169

Заказ инструмента: http://steelcam.org W Style 8 (343) 382-52-03 | sales@sverla-ekb.ru External Toolholders Turning Inserts DWLN 95° h h1 f b L2 L1 DWLN LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 033430 DWLNL 2020 K06 LH WN_0604 20 20 25 125 25 033431 DWLNL 2525 M06 LH WN_0604 25 25 32 150 25 033432 DWLNR 2020 K06 RH WN_0604 20 20 25 125 25 033433 DWLNR 2525 M06 RH WN_0604 25 25 32 150 25 033434 DWLNL 2020 K08 LH WN_0804 20 20 25 125 34 033435 DWLNL 2525 M08 LH WN_0804 25 25 32 150 34 033436 DWLNL 3232 P08 LH WN_0804 32 32 40 170 34 D Style External Toolholder 033437 DWLNR 2020 K08 RH WN_0804 20 20 25 125 34 for Negative Inserts: 033438 DWLNR 2525 M08 RH WN_0804 25 25 32 150 34 WN_0604, & WN_0804 033439 DWLNR 3232 P08 RH WN_0804 32 32 40 170 34 Application: O/D Face and Turn Axial Approach 95° Axial -6° Radial -6° Profiling Clearance Angle β = 0° RH Holder Shown DWLNL/R Spare Parts Item Description Clamp Screw Clamp Clamp Anvil Anvil Screw Clamp & Anvil EDP EDP Spring EDP EDP EDP Screw Key DWLNL/R 2020 K06 033711 1695 033709 DC2708 033720 4294 030973 IWSN323 033718 1764 018286 KH5003 DWLNL/R 2525 M06 DWLNL/R 2020 K08 DWLNL/R 2525 M08 033710 1696 033707 DC2712 033719 4295 009251 IWSN433 033716 1766 018287 KH5004 DWLNL/R 3232 P08 C168 www.kennametal.com
