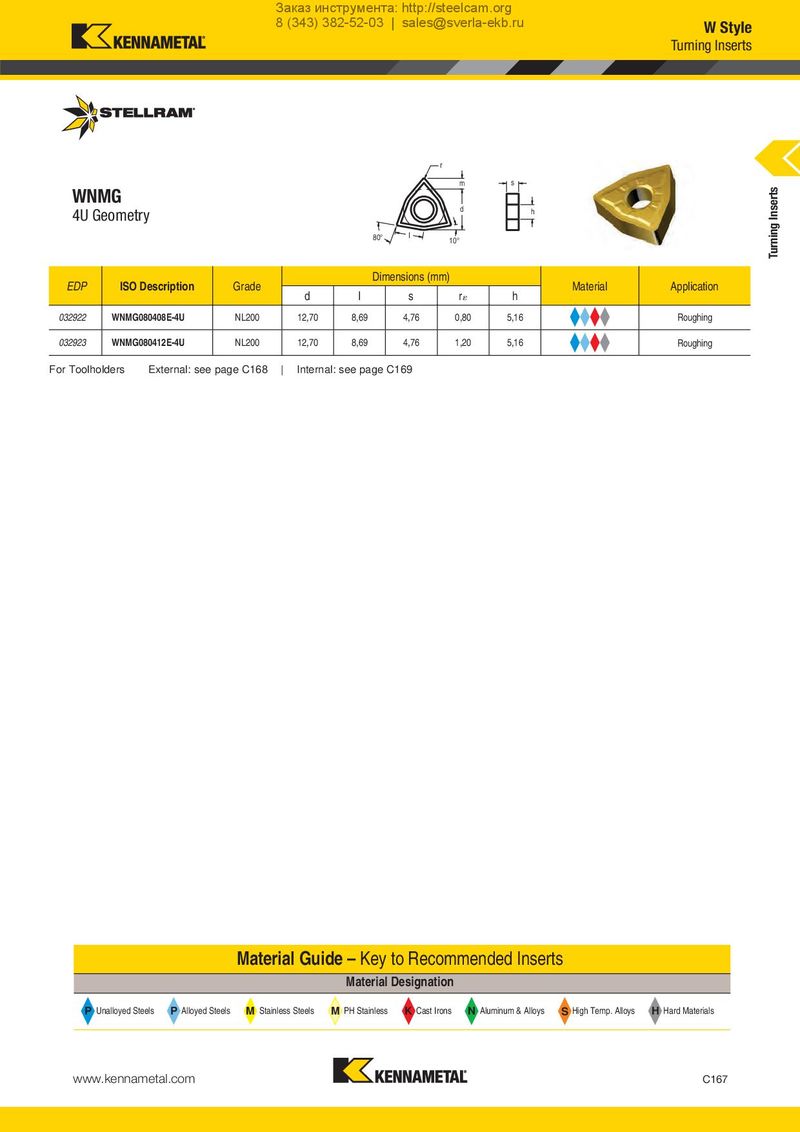

Каталог Stellram токарный инструмент - страница 168

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru W Style Turning Inserts r m s Turning Inserts WNMG d 4U Geometry h 80° I 10° EDP ISO Description Grade Dimensions (mm) Material Application d I s r h 032922 WNMG080408E-4U NL200 12,70 8,69 4,76 0,80 5,16 Roughing 032923 WNMG080412E-4U NL200 12,70 8,69 4,76 1,20 5,16 Roughing For Toolholders External: see page C168 | Internal: see page C169 Material Guide – Key to Recommended Inserts Material Designation P Unalloyed Steels P Alloyed Steels M Stainless Steels M PH Stainless K Cast Irons N Aluminum & Alloys S High Temp. Alloys H Hard Materials www.kennametal.com C167
