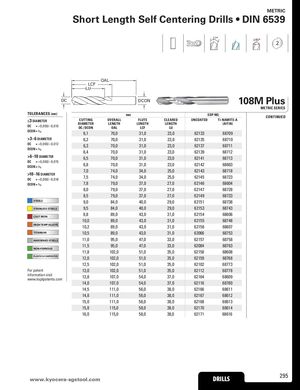

METRIC Short Length Self Centering Drills • DIN 6539 27° 145° 2 OAL LCF LU DC DCON 108M Plus METRIC SERIES TOLERANCES (mm) mm EDP NO, CONTINUED ≤3 DIAMETER CUTTING OVERALL FLUTE CLEARED UNCOATED Ti-NAMITE-A DC = +0,000/–0,010 DIAMETER LENGTH LENGTH LENGTHDC / DCONOALLCFLU (AlTiN) DCON = h6 6,1 70,0 31,0 23,0 62133 68709 >3–6 DIAMETER 6,2 70,0 31,0 23,0 62135 68710 DC = +0,000/–0,012 6,3 70,0 31,0 23,0 62137 68711 DCON = h6 6,4 70,0 31,0 23,0 62139 68712 >6–10 DIAMETER 6,5 70,0 31,0 23,0 62141 68713 DC = +0,000/–0,015 DCON = h6 6,8 70,0 31,0 23,0 62142 68603 7,0 74,0 34,0 25,0 62143 68718 >10–16 DIAMETERDC= +0,000/–0,018 7,5 74,0 34,0 25,0 62145 68723 DCON = h6 7,8 79,0 37,0 27,0 62146 68604 8,0 79,0 37,0 27,0 62147 68728 8,5 79,0 37,0 27,0 62149 68733 STEELS 9,0 84,0 40,0 29,0 62151 68738 STAINLESS STEELS 9,5 84,0 40,0 29,0 62153 68743 CAST IRON 9,8 89,0 43,0 31,0 62154 68606 10,0 89,0 43,0 31,0 62155 68748 HIGH TEMP ALLOYS 10,2 89,0 43,0 31,0 62156 68607 TITANIUM 10,5 89,0 43,0 31,0 62066 68753 HARDENED STEELS 11,0 95,0 47,0 33,0 62157 68758 11,5 95,0 47,0 33,0 62084 68763 NON-FERROUS 11,8 102,0 51,0 35,0 62158 68608 PLASTICS/COMPOSITES 12,0 102,0 51,0 35,0 62159 68768 12,5 102,0 51,0 35,0 62102 68773 For patent 13,0 102,0 51,0 35,0 62112 68778 information visitwww.ksptpatents.com13,8 107,0 54,0 37,0 62164 68609 14,0 107,0 54,0 37,0 62116 68780 14,5 111,0 56,0 38,0 62166 68611 14,8 111,0 56,0 38,0 62167 68612 15,0 111,0 56,0 38,0 62168 68613 15,8 115,0 58,0 38,0 62170 68614 16,0 115,0 58,0 38,0 62171 68616 www.kyoceraD-sRgILsLtoSol.com DRILLS 295
