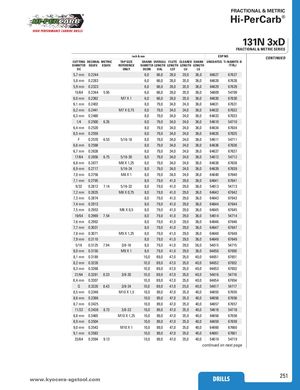

Общий каталог SGS 2021 - страница 251

FRACTIONAL & METRIC Hi-PerCarb® 131N 3xD FRACTIONAL & METRIC SERIES inch & mm EDP NO. CONTINUED CUTTING DECIMAL METRIC TAP SIZE SHANK OVERALL FLUTE CLEARED SHANK UNCOATED Ti-NAMITE-B DIAMETER EQUIV. EQUIV. REFERENCE DIAMETER LENGTH LENGTH LENGTH LENGTH (TiB2) DC ONLY DCON OAL LCF LU LS 5,7 mm 0.2244 6,0 66,0 28,0 20,0 36,0 64627 67627 5,8 mm 0.2283 6,0 66,0 28,0 20,0 36,0 64628 67628 5,9 mm 0.2323 6,0 66,0 28,0 20,0 36,0 64629 67629 15/64 0.2344 5.95 6,0 66,0 28,0 20,0 36,0 54609 54709 6,0 mm 0.2362 M7 X 1 6,0 66,0 28,0 20,0 36,0 64630 67630 6,1 mm 0.2402 8,0 79,0 34,0 24,0 36,0 64631 67631 6,2 mm 0.2441 M7 X 0,75 8,0 79,0 34,0 24,0 36,0 64632 67632 6,3 mm 0.2480 8,0 79,0 34,0 24,0 36,0 64633 67633 1/4 0.2500 6.35 8,0 79,0 34,0 24,0 36,0 54610 54710 6,4 mm 0.2520 8,0 79,0 34,0 24,0 36,0 64634 67634 6,5 mm 0.2559 8,0 79,0 34,0 24,0 36,0 64635 67635 F 0.2570 6.53 5/16-18 8,0 79,0 34,0 24,0 36,0 54611 54711 6,6 mm 0.2598 8,0 79,0 34,0 24,0 36,0 64636 67636 6,7 mm 0.2638 8,0 79,0 34,0 24,0 36,0 64637 67637 17/64 0.2656 6.75 5/16-20 8,0 79,0 34,0 24,0 36,0 54612 54712 6,8 mm 0.2677 M8 X 1,25 8,0 79,0 34,0 24,0 36,0 64638 67638 6,9 mm 0.2717 5/16-24 8,0 79,0 34,0 24,0 36,0 64639 67639 7,0 mm 0.2756 M8 X 1 8,0 79,0 34,0 24,0 36,0 64640 67640 7,1 mm 0.2795 8,0 79,0 41,0 29,0 36,0 64641 67641 9/32 0.2812 7.14 5/16-32 8,0 79,0 41,0 29,0 36,0 54613 54713 7,2 mm 0.2835 M8 X 0,75 8,0 79,0 41,0 29,0 36,0 64642 67642 7,3 mm 0.2874 8,0 79,0 41,0 29,0 36,0 64643 67643 7,4 mm 0.2913 8,0 79,0 41,0 29,0 36,0 64644 67644 7,5 mm 0.2953 M8 X 0,5 8,0 79,0 41,0 29,0 36,0 64645 67645 19/64 0.2969 7.54 8,0 79,0 41,0 29,0 36,0 54614 54714 7,6 mm 0.2992 8,0 79,0 41,0 29,0 36,0 64646 67646 7,7 mm 0.3031 8,0 79,0 41,0 29,0 36,0 64647 67647 7,8 mm 0.3071 M9 X 1,25 8,0 79,0 41,0 29,0 36,0 64648 67648 7,9 mm 0.3110 8,0 79,0 41,0 29,0 36,0 64649 67649 5/16 0.3125 7.94 3/8-16 8,0 79,0 41,0 29,0 36,0 54615 54715 8,0 mm 0.3150 M9 X 1 8,0 79,0 41,0 29,0 36,0 64650 67650 8,1 mm 0.3189 10,0 89,0 47,0 35,0 40,0 64651 67651 8,2 mm 0.3228 10,0 89,0 47,0 35,0 40,0 64652 67652 8,3 mm 0.3268 10,0 89,0 47,0 35,0 40,0 64653 67653 21/64 0.3281 8.33 3/8-20 10,0 89,0 47,0 35,0 40,0 54616 54716 8,4 mm 0.3307 10,0 89,0 47,0 35,0 40,0 64654 67654 Q 0.3320 8.43 3/8-24 10,0 89,0 47,0 35,0 40,0 54617 54717 8,5 mm 0.3346 M10 X 1,5 10,0 89,0 47,0 35,0 40,0 64655 67655 8,6 mm 0.3386 10,0 89,0 47,0 35,0 40,0 64656 67656 8,7 mm 0.3425 10,0 89,0 47,0 35,0 40,0 64657 67657 11/32 0.3438 8.73 3/8-32 10,0 89,0 47,0 35,0 40,0 54618 54718 8,8 mm 0.3465 M10 X 1,25 10,0 89,0 47,0 35,0 40,0 64658 67658 8,9 mm 0.3504 10,0 89,0 47,0 35,0 40,0 64659 67659 9,0 mm 0.3543 M10 X 1 10,0 89,0 47,0 35,0 40,0 64660 67660 9,1 mm 0.3583 10,0 89,0 47,0 35,0 40,0 64661 67661 23/64 0.3594 9.13 10,0 89,0 47,0 35,0 40,0 54619 54719 continued on next page www.kyoceraD-sRgILsLtoSol.com DRILLS 251
