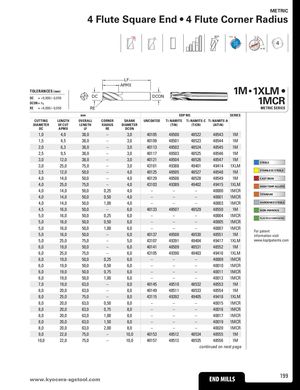

METRIC 4 Flute Square End • 4 Flute Corner Radius 30° POS 4 ≠ LF APMX TOLERANCES (mm) 1M • 1XLM • DC = +0,000/–0,050 DC DCONDCON = h6 1MCR  RE = +0,000/–0,050 RE METRIC SERIES mm EDP NO. SERIES CUTTING LENGTH OVERALL CORNER SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH RADIUS DIAMETER (TiN) (TiCN) (AlTiN) DC APMX LF RE DCON 1,0 4,0 38,0 – 3,0 40105 48500 48522 48543 1M 1,5 4,5 38,0 – 3,0 40109 48501 48523 48544 1M 2,0 6,3 38,0 – 3,0 40113 48502 48524 48545 1M 2,5 9,5 38,0 – 3,0 40117 48503 48525 48546 1M 3,0 12,0 38,0 – 3,0 40121 48504 48526 48547 1M STEELS 3,0 25,0 75,0 – 3,0 43101 49388 49401 49414 1XLM 3,5 12,0 50,0 – 4,0 40125 48505 48527 48548 1M STAINLESS STEELS 4,0 14,0 50,0 – 4,0 40129 48506 48528 48549 1M CAST IRON 4,0 25,0 75,0 – 4,0 43103 49389 49402 49415 1XLM HIGH TEMP ALLOYS 4,0 14,0 50,0 0,25 4,0 – – – 40000 1MCR 4,0 14,0 50,0 0,50 4,0 – – – 40001 1MCR TITANIUM 4,0 14,0 50,0 1,00 4,0 – – – 40003 1MCR HARDENED STEELS 4,5 16,0 50,0 – 6,0 40133 48507 48529 48550 1M NON-FERROUS 5,0 16,0 50,0 0,25 6,0 – – – 40004 1MCR PLASTICS/COMPOSITES 5,0 16,0 50,0 0,50 6,0 – – – 40005 1MCR 5,0 16,0 50,0 1,00 6,0 – – – 40007 1MCR For patent 5,0 16,0 50,0 – 6,0 40137 48508 48530 48551 1M information visit 5,0 25,0 75,0 – 5,0 43107 49391 49404 49417 1XLM www.ksptpatents.com 6,0 19,0 50,0 – 6,0 40141 48509 48531 48552 1M 6,0 25,0 75,0 – 6,0 43105 49390 49403 49416 1XLM 6,0 19,0 50,0 0,25 6,0 – – – 40009 1MCR 6,0 19,0 50,0 0,50 6,0 – – – 40010 1MCR 6,0 19,0 50,0 0,75 6,0 – – – 40011 1MCR 6,0 19,0 50,0 1,00 6,0 – – – 40012 1MCR 7,0 19,0 63,0 – 8,0 40145 48510 48532 48553 1M 8,0 20,0 63,0 – 8,0 40149 48511 48533 48554 1M 8,0 25,0 75,0 – 8,0 43115 49392 49405 49418 1XLM 8,0 20,0 63,0 0,50 8,0 – – – 40015 1MCR 8,0 20,0 63,0 0,75 8,0 – – – 40016 1MCR 8,0 20,0 63,0 1,00 8,0 – – – 40017 1MCR 8,0 20,0 63,0 1,50 8,0 – – – 40019 1MCR 8,0 20,0 63,0 2,00 8,0 – – – 40020 1MCR 9,0 22,0 75,0 – 10,0 40153 48512 48534 48555 1M 10,0 22,0 75,0 – 10,0 40157 48513 48535 48556 1M continued on next page www.kyocera-sEgNsDtoMoIl.LcLoSm END MILLS 199
