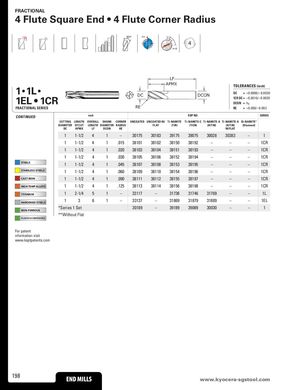

FRACTIONAL 4 Flute Square End • 4 Flute Corner Radius 30° POS 4 ≠ LF 1 • 1L •  APMX TOLERANCES (inch)DCDCONDC= +0.0000/–0.0020 1EL • 1CR  1CR DC = –0.0010/–0.0020DCON=h6 FRACTIONAL SERIES RE RE = +0.000/–0.002 CONTINUED inch EDP NO. SERIES CUTTING LENGTH OVERALL SHANK CORNER UNCOATED UNCOATED W/ Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A Ti-NAMITE-A Di-NAMITE® DIAMETER OF CUT LENGTH DIAMETER RADIUS FLAT (TiN) (TiCN) (AlTiN) (AlTiN) (Diamond) DC APMX LF DCON RE W/FLAT 1 1-1/2 4 1 – 30175 30183 39175 39075 30028 30383 – 1 1 1-1/2 4 1 .015 38101 38102 38150 38192 – – – 1CR 1 1-1/2 4 1 .020 38103 38104 38151 38193 – – – 1CR 1 1-1/2 4 1 .030 38105 38106 38152 38194 – – – 1CR STEELS 1 1-1/2 4 1 .045 38107 38108 38153 38195 – – – 1CR STAINLESS STEELS 1 1-1/2 4 1 .060 38109 38110 38154 38196 – – – 1CR CAST IRON 1 1-1/2 4 1 .090 38111 38112 38155 38197 – – – 1CR HIGH TEMP ALLOYS 1 1-1/2 4 1 .125 38113 38114 38156 38198 – – – 1CR TITANIUM 1 2-1/4 5 1 – 33117 – 31736 31746 31769 – – 1L HARDENED STEELS 1 3 6 1 – 33137 – 31869 31879 31889 – – 1EL *Series 1 Set 30189 – 39189 39089 30030 – – 1 NON-FERROUS **Without Flat PLASTICS/COMPOSITES For patent information visit www.ksptpatents.com 198 END MILLS wwENwD.kMyIoLcLSera-sgstool.com
