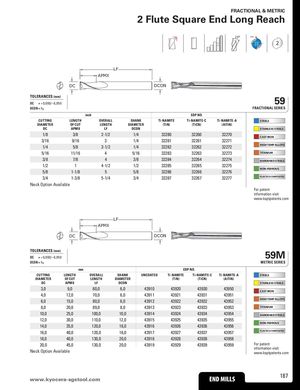

Общий каталог SGS 2021 - страница 187

FRACTIONAL & METRIC 2 Flute Square End Long Reach 25° POS 2 LF APMX DC DCON TOLERANCES (mm)DC= +0,000/–0,050 59 DCON = h6 FRACTIONAL SERIES inch EDP NO. CUTTING LENGTH OVERALL SHANK Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A STEELS DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) DC APMX LF DCON STAINLESS STEELS 1/8 3/8 2-1/2 1/4 32280 32260 32270 CAST IRON 3/16 9/16 3 1/4 32281 32261 32271 1/4 5/8 3-1/2 1/4 32282 32262 32272 HIGH TEMP ALLOYS 5/16 11/16 4 5/16 32283 32263 32273 TITANIUM 3/8 7/8 4 3/8 32284 32264 32274 HARDENED STEELS 1/2 1 4-1/2 1/2 32285 32265 32275 NON-FERROUS 5/8 1-1/8 5 5/8 32286 32266 32276 3/4 1-3/8 5-1/4 3/4 32287 32267 32277 PLASTICS/COMPOSITES Neck Option Available For patent information visit www.ksptpatents.com LF APMX DC DCON TOLERANCES (mm)DC= +0,000/–0,050 59M DCON = h6 METRIC SERIES mm EDP NO. CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A STEELS DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) DC APMX LF DCON STAINLESS STEELS 3,0 9,0 60,0 6,0 43910 43920 43930 43950 CAST IRON 4,0 12,0 70,0 6,0 43911 43921 43931 43951 6,0 15,0 80,0 6,0 43912 43922 43932 43952 HIGH TEMP ALLOYS 8,0 20,0 89,0 8,0 43913 43923 43933 43953 TITANIUM 10,0 25,0 100,0 10,0 43914 43924 43934 43954 HARDENED STEELS 12,0 30,0 110,0 12,0 43915 43925 43935 43955 NON-FERROUS 14,0 35,0 120,0 16,0 43916 43926 43936 43956 16,0 40,0 120,0 16,0 43917 43927 43937 43957 PLASTICS/COMPOSITES 18,0 40,0 130,0 20,0 43918 43928 43938 43958 20,0 45,0 130,0 20,0 43919 43929 43939 43959 For patent Neck Option Available information visitwww.ksptpatents.com www.kyocera-sEgNsDtoMoIl.LcLoSm END MILLS 187
