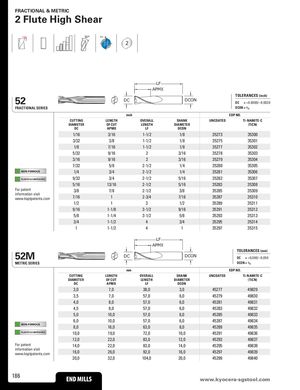

FRACTIONAL & METRIC 2 Flute High Shear 30° POS 2 LF APMX TOLERANCES (inch) 52 DC DCON DC = +0.0000/–0.0020 FRACTIONAL SERIES DCON = h6 inch EDP NO. CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE-C DIAMETER OF CUT LENGTH DIAMETER (TiCN) DC APMX LF DCON 1/16 3/16 1-1/2 1/8 35273 35300 3/32 3/8 1-1/2 1/8 35275 35301 1/8 7/16 1-1/2 1/8 35277 35302 5/32 9/16 2 3/16 35278 35303 3/16 9/16 2 3/16 35279 35304 7/32 5/8 2-1/2 1/4 35280 35305 NON-FERROUS 1/4 3/4 2-1/2 1/4 35281 35306 PLASTICS/COMPOSITES 9/32 3/4 2-1/2 5/16 35282 35307 5/16 13/16 2-1/2 5/16 35283 35308 For patent 3/8 7/8 2-1/2 3/8 35285 35309 information visitwww.ksptpatents.com 7/16 1 2-3/4 7/16 35287 35310 1/2 1 3 1/2 35289 35311 9/16 1-1/8 3-1/2 9/16 35291 35312 5/8 1-1/4 3-1/2 5/8 35293 35313 3/4 1-1/2 4 3/4 35295 35314 1 1-1/2 4 1 35297 35315 LF APMX TOLERANCES (mm) 52M DC DCON DC = +0,000/–0,050 METRIC SERIES DCON = h6 mm EDP NO. CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE-C DIAMETER OF CUT LENGTH DIAMETER (TiCN) DC APMX LF DCON 3,0 7,0 38,0 3,0 45277 49829 3,5 7,0 57,0 6,0 45279 49830 4,0 8,0 57,0 6,0 45281 49831 4,5 8,0 57,0 6,0 45283 49832 5,0 10,0 57,0 6,0 45285 49833 6,0 10,0 57,0 6,0 45287 49834 NON-FERROUS 8,0 16,0 63,0 8,0 45289 49835 PLASTICS/COMPOSITES 10,0 19,0 72,0 10,0 45291 49836 12,0 22,0 83,0 12,0 45293 49837 For patent 14,0 22,0 83,0 14,0 45295 49838 information visitwww.ksptpatents.com 16,0 26,0 92,0 16,0 45297 49839 20,0 32,0 104,0 20,0 45299 49840 186 END MILLS wwENwD.kMyIoLcLSera-sgstool.com
