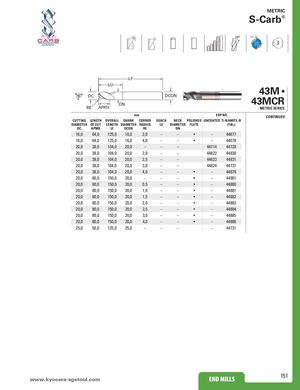

METRIC S-Carb® 38° POS ® 3 LF LU 43M • DC DCONDN 43MCR RE APMX METRIC SERIES mm EDP NO. CONTINUED CUTTING LENGTH OVERALL SHANK CORNER REACH NECK POLISHED UNCOATED Ti-NAMITE-B DIAMETER OF CUT LENGTH DIAMETER RADIUS LU DIAMETER FLUTE (TiB2) DC APMX LF DCON RE DN 16,0 64,0 125,0 16,0 3,0 – – • – 44877 16,0 64,0 125,0 16,0 4,0 – – • – 44878 20,0 38,0 104,0 20,0 – – – 44714 44728 20,0 38,0 104,0 20,0 2,0 – – 44822 44830 20,0 38,0 104,0 20,0 2,5 – – 44823 44831 20,0 38,0 104,0 20,0 3,0 – – 44824 44737 20,0 38,0 104,0 20,0 4,0 – – • – 44879 20,0 80,0 150,0 20,0 – – – • – 44901 20,0 80,0 150,0 20,0 0,5 – – • – 44880 20,0 80,0 150,0 20,0 1,0 – – • – 44881 20,0 80,0 150,0 20,0 1,5 – – • – 44882 20,0 80,0 150,0 20,0 2,0 – – • – 44883 20,0 80,0 150,0 20,0 2,5 – – • – 44884 20,0 80,0 150,0 20,0 3,0 – – • – 44885 20,0 80,0 150,0 20,0 4,0 – – • – 44886 25,0 50,0 125,0 25,0 – – – – 44731 www.kyocerEaN-DsgMstILoLoSl.com END MILLS 151
