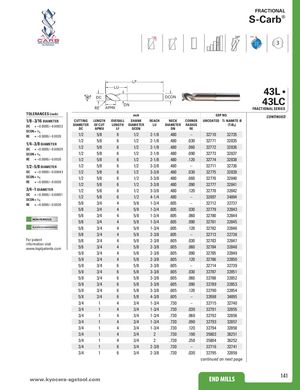

FRACTIONAL S-Carb® 38° POS ® 3 LF LU 43L • DC DCONDN 43LC RE APMX FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. CONTINUED 1/8–3/16 DIAMETER CUTTING LENGTH OVERALL SHANK REACH NECK CORNER UNCOATED Ti-NAMITE-B DC = +0.0000/–0.00032 DIAMETER OF CUT LENGTH DIAMETER LU DIAMETER RADIUSDCAPMXLFDCONDNRE (TiB2) DCON = h6RE= +0.0000/–0.0020 1/2 5/8 6 1/2 2-1/8 .480 – 32710 32735 1/4–3/8 DIAMETER 1/2 5/8 6 1/2 2-1/8 .480 .030 32771 32835 DC = +0.0000/–0.00035 1/2 5/8 6 1/2 2-1/8 .480 .060 32772 32836 DCON = h6 1/2 5/8 6 1/2 2-1/8 .480 .090 32773 32837 RE = +0.0000/–0.0020 1/2 5/8 6 1/2 2-1/8 .480 .120 32774 32838 1/2–5/8 DIAMETER 1/2 5/8 6 1/2 3-3/8 .480 – 32711 32736 DC = +0.0000/–0.00043 1/2 5/8 6 1/2 3-3/8 .480 .030 32775 32839 DCON = h6 1/2 5/8 6 1/2 3-3/8 .480 .060 32776 32840 RE = +0.0000/–0.0020 1/2 5/8 6 1/2 3-3/8 .480 .090 32777 32841 3/4–1 DIAMETER 1/2 5/8 6 1/2 3-3/8 .480 .120 32778 32842 DC = +0.0000/–0.00051 1/2 5/8 6 1/2 4-1/4 .480 – 32697 34894 DCON = h6 RE = +0.0000/–0.0020 5/8 3/4 4 5/8 1-3/4 .605 – 32712 32737 5/8 3/4 4 5/8 1-3/4 .605 .030 32779 32843 5/8 3/4 4 5/8 1-3/4 .605 .060 32780 32844 NON-FERROUS 5/8 3/4 4 5/8 1-3/4 .605 .090 32781 32845 PLASTICS/COMPOSITES 5/8 3/4 4 5/8 1-3/4 .605 .120 32782 32846 5/8 3/4 4 5/8 2-3/8 .605 – 32713 32738 For patent 5/8 3/4 4 5/8 2-3/8 .605 .030 32783 32847 information visitwww.ksptpatents.com 5/8 3/4 4 5/8 2-3/8 .605 .060 32784 32848 5/8 3/4 4 5/8 2-3/8 .605 .090 32785 32849 5/8 3/4 4 5/8 2-3/8 .605 .120 32786 32850 5/8 3/4 6 5/8 3-3/8 .605 – 32714 32739 5/8 3/4 6 5/8 3-3/8 .605 .030 32787 32851 5/8 3/4 6 5/8 3-3/8 .605 .060 32788 32852 5/8 3/4 6 5/8 3-3/8 .605 .090 32789 32853 5/8 3/4 6 5/8 3-3/8 .605 .120 32790 32854 5/8 3/4 6 5/8 4-3/8 .605 – 32698 34895 3/4 1 4 3/4 1-3/4 .730 – 32715 32740 3/4 1 4 3/4 1-3/4 .730 .030 32791 32855 3/4 1 4 3/4 1-3/4 .730 .060 32792 32856 3/4 1 4 3/4 1-3/4 .730 .090 32793 32857 3/4 1 4 3/4 1-3/4 .730 .120 32794 32858 3/4 1 4 3/4 2 .730 .190 35803 36251 3/4 1 4 3/4 2 .730 .250 35804 36252 3/4 1 6 3/4 2-3/8 .730 – 32716 32741 3/4 1 6 3/4 2-3/8 .730 .030 32795 32859 continued on next page www.kyocerEaN-DsgMstILoLoSl.com END MILLS 141
