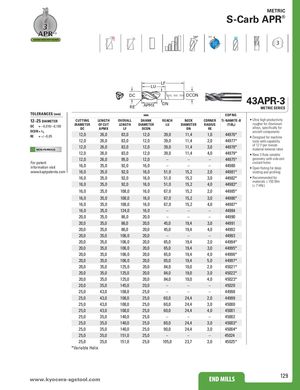

Общий каталог SGS 2021 - страница 129

METRIC S-Carb APR® 38° POS ADVANCED PRODUCTIVITY ROUGHER ADVANCED PRODUCTIVITY ROUGHER 3 LF LU DC DCON RE APMX DN 43APR-3 METRIC SERIES TOLERANCES (mm) mm EDP NO. 12–25 DIAMETERDC= –0,010/–0,100 CUTTING LENGTH OVERALL SHANK REACH NECK CORNER Ti-NAMITE-B • Ultra high-productivityDIAMETEROF CUTLENGTHDIAMETERLUDIAMETERRADIUS(TiB2)rougher for AluminumDCAPMXLFDCONDNREalloys, specifically for DCON = h6RE= +/–0,05 12,0 26,0 83,0 12,0 39,0 11,4 1,0 44976* aircraft components• Designed for machine 12,0 26,0 83,0 12,0 39,0 11,4 2,0 44977* tools with capability NON-FERROUS 12,0 26,0 83,0 12,0 39,0 11,4 3,0 44978* of 12 l³ per minutematerial removal rates 12,0 26,0 83,0 12,0 39,0 11,4 4,0 44979* • New 3 flute variable 12,0 26,0 95,0 12,0 – – – 44975* geometry with side exit For patentinformation visit coolant holes16,035,092,016,0–––44980• Open fluting for deep www.ksptpatents.com 16,0 35,0 92,0 16,0 51,0 15,2 2,0 44981* slotting and profiling 16,0 35,0 92,0 16,0 51,0 15,2 3,0 44982* • Recommended for materials ≤ 150 Bhn 16,0 35,0 92,0 16,0 51,0 15,2 4,0 44983* (≤ 7 HRc) 16,0 35,0 108,0 16,0 67,0 15,2 2,0 44985* 16,0 35,0 108,0 16,0 67,0 15,2 3,0 44986* 16,0 35,0 108,0 16,0 67,0 15,2 4,0 44987* 16,0 35,0 124,0 16,0 – – – 44984 20,0 35,0 86,0 20,0 – – – 44990 20,0 35,0 86,0 20,0 45,0 19,4 3,0 44991 20,0 35,0 86,0 20,0 45,0 19,4 4,0 44992 20,0 35,0 106,0 20,0 – – – 44993 20,0 35,0 106,0 20,0 65,0 19,4 2,0 44994* 20,0 35,0 106,0 20,0 65,0 19,4 3,0 44995* 20,0 35,0 106,0 20,0 65,0 19,4 4,0 44996* 20,0 35,0 106,0 20,0 65,0 19,4 5,0 44997* 20,0 35,0 125,0 20,0 84,0 19,0 2,0 45021* 20,0 35,0 125,0 20,0 84,0 19,0 3,0 45022* 20,0 35,0 125,0 20,0 84,0 19,0 4,0 45023* 20,0 35,0 145,0 20,0 – – – 45020 25,0 43,0 108,0 25,0 – – – 44998 25,0 43,0 108,0 25,0 60,0 24,4 2,0 44999 25,0 43,0 108,0 25,0 60,0 24,4 3,0 45000 25,0 43,0 108,0 25,0 60,0 24,4 4,0 45001 25,0 35,0 140,0 25,0 – – – 45002 25,0 35,0 140,0 25,0 80,0 24,4 3,0 45003* 25,0 35,0 140,0 25,0 90,0 24,4 3,0 45004* 25,0 35,0 151,0 25,0 – – – 45024 25,0 35,0 151,0 25,0 105,0 23,7 3,0 45025* *Variable Helix www.kyocerEaN-DsgMstILoLoSl.com END MILLS 129
