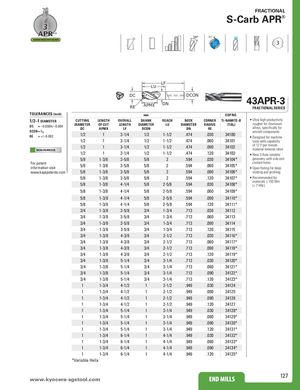

FRACTIONAL S-Carb APR® 38° POS ADVANCED PRODUCTIVITY ROUGHER ADVANCED PRODUCTIVITY ROUGHER 3 LF LU DC DCON RE APMX DN 43APR-3FRACTIONAL SERIES TOLERANCES (inch) mm EDP NO. 1/2–1 DIAMETERDC= –0.0004/–0.004 CUTTING LENGTH OVERALL SHANK REACH NECK CORNER Ti-NAMITE-B • Ultra high-productivityDIAMETEROF CUTLENGTHDIAMETERLUDIAMETERRADIUS(TiB2)rougher for AluminumDCAPMXLFDCONDNREalloys, specifically for DCON = h6RE= +/–0.002 1/2 1 3-1/4 1/2 1-1/2 .474 .030 34100 aircraft components• Designed for machine 1/2 1 3-1/4 1/2 1-1/2 .474 .060 34101 tools with capability NON-FERROUS 1/2 1 3-1/4 1/2 1-1/2 .474 .090 34102 of 12 l³ per minutematerial removal rates 1/2 1 3-1/4 1/2 1-1/2 .474 .120 34103 • New 3 flute variable 5/8 1-3/8 3-5/8 5/8 2 .594 .030 34104* geometry with side exit For patentinformation visit coolant holes5/81-3/83-5/85/82.594.06034105*• Open fluting for deep www.ksptpatents.com 5/8 1-3/8 3-5/8 5/8 2 .594 .090 34106* slotting and profiling 5/8 1-3/8 3-5/8 5/8 2 .594 .120 34107* • Recommended for materials ≤ 150 Bhn 5/8 1-3/8 4-1/4 5/8 2-5/8 .594 .030 34108* (≤ 7 HRc) 5/8 1-3/8 4-1/4 5/8 2-5/8 .594 .060 34109* 5/8 1-3/8 4-1/4 5/8 2-5/8 .594 .090 34110* 5/8 1-3/8 4-1/4 5/8 2-5/8 .594 .120 34111* 3/4 1-3/8 3-5/8 3/4 1-3/4 .713 .030 34112 3/4 1-3/8 3-5/8 3/4 1-3/4 .713 .060 34113 3/4 1-3/8 3-5/8 3/4 1-3/4 .713 .090 34114 3/4 1-3/8 3-5/8 3/4 1-3/4 .713 .120 34115 3/4 1-3/8 4-3/8 3/4 2-1/2 .713 .030 34116* 3/4 1-3/8 4-3/8 3/4 2-1/2 .713 .060 34117* 3/4 1-3/8 4-3/8 3/4 2-1/2 .713 .090 34118* 3/4 1-3/8 4-3/8 3/4 2-1/2 .713 .120 34119* 3/4 1-3/8 5-1/4 3/4 3-1/4 .713 .030 34120* 3/4 1-3/8 5-1/4 3/4 3-1/4 .713 .060 34121* 3/4 1-3/8 5-1/4 3/4 3-1/4 .713 .090 34122* 3/4 1-3/8 5-1/4 3/4 3-1/4 .713 .120 34123* 1 1-3/4 4-1/2 1 2-1/2 .949 .030 34124 1 1-3/4 4-1/2 1 2-1/2 .949 .060 34125 1 1-3/4 4-1/2 1 2-1/2 .949 .090 34126 1 1-3/4 4-1/2 1 2-1/2 .949 .120 34127 1 1-3/4 5-1/4 1 3-1/4 .949 .030 34128* 1 1-3/4 5-1/4 1 3-1/4 .949 .060 34129* 1 1-3/4 5-1/4 1 3-1/4 .949 .090 34130* 1 1-3/4 5-1/4 1 3-1/4 .949 .120 34131* 1 1-3/4 6-1/4 1 4-1/4 .949 .030 34132* 1 1-3/4 6-1/4 1 4-1/4 .949 .060 34133* 1 1-3/4 6-1/4 1 4-1/4 .949 .090 34134* 1 1-3/4 6-1/4 1 4-1/4 .949 .120 34135* *Variable Helix www.kyocerEaN-DsgMstILoLoSl.com END MILLS 127
