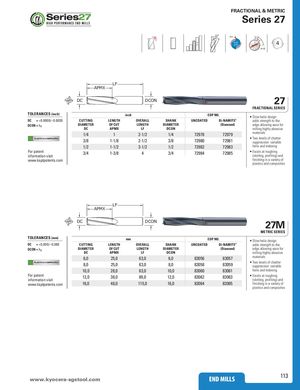

Общий каталог SGS 2021 - страница 113

FRACTIONAL & METRIC Series 27 12° POS 10° 4 ≠ LF APMX DC DCON 27 FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. • Slow helix design DC = +0.0000/–0.0030 CUTTING LENGTH OVERALL SHANK UNCOATED Di-NAMITE® adds strength to the DCON = h6 DIAMETER OF CUT LENGTH DIAMETER (Diamond) edge allowing ease for DC APMX LF DCON milling highly abrasive 1/4 1 2-1/2 1/4 72978 72979 materials PLASTICS/COMPOSITES 3/8 1-1/8 2-1/2 3/8 72980 72981 • Two levels of chattersuppression: variable 1/2 1-1/2 3-1/2 1/2 72982 72983 helix and indexing For patentinformation visit 3/4 1-3/8 4 3/4 72984 72985 • Excels at roughing(slotting, profiling) and www.ksptpatents.com finishing in a variety of plastics and composites LF APMX DC DCON 27M METRIC SERIES TOLERANCES (mm) mm EDP NO. • Slow helix design DC = +0,000/–0,080 CUTTING LENGTH OVERALL SHANK UNCOATED Di-NAMITE® adds strength to the DCON = h6 DIAMETER OF CUT LENGTH DIAMETER (Diamond) edge allowing ease for DC APMX LF DCON milling highly abrasive 6,0 25,0 63,0 6,0 83056 83057 materials PLASTICS/COMPOSITES 8,0 25,0 63,0 8,0 83058 83059 • Two levels of chattersuppression: variable 10,0 28,0 63,0 10,0 83060 83061 helix and indexing For patentinformation visit 12,0 38,0 89,0 12,0 83062 83063 • Excels at roughing(slotting, profiling) and www.ksptpatents.com 16,0 48,0 115,0 16,0 83064 83065 finishing in a variety of plastics and composites www.kyocerEaN-DsgMstILoLoSl.com END MILLS 113
