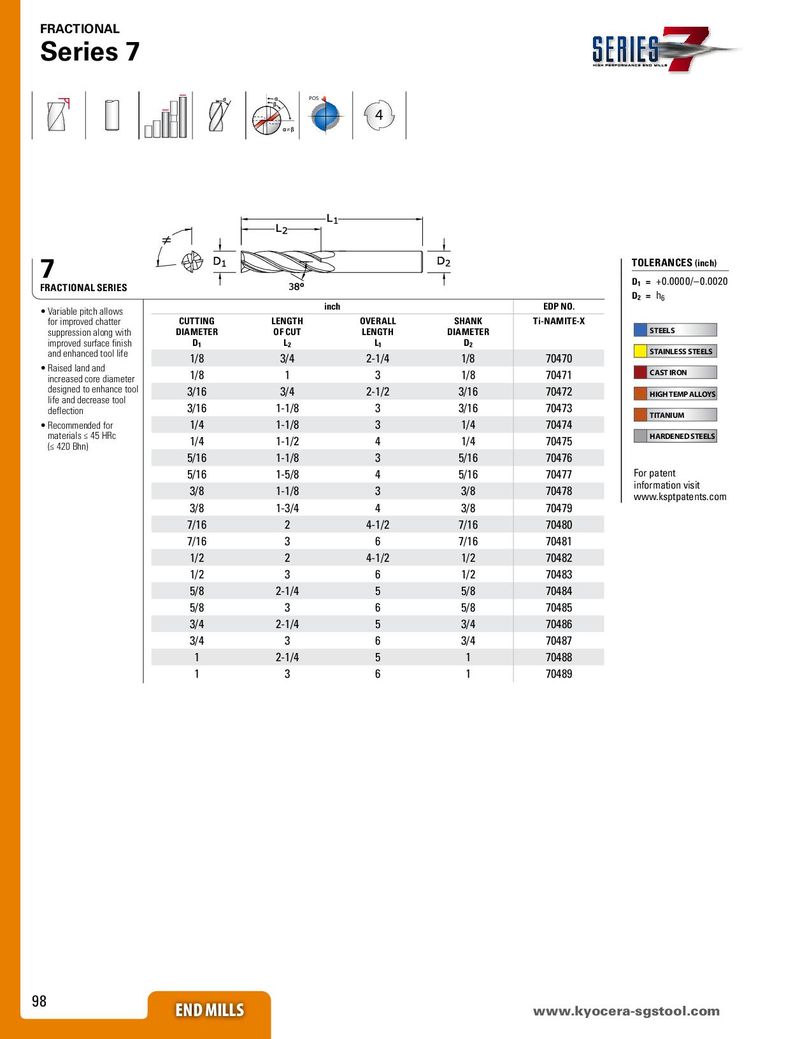

FRACTIONAL Series 7 POS 4 ≠ 7 TOLERANCES (inch) FRACTIONAL SERIES D1 = +0.0000/–0.0020 D2 = h6 • Variable pitch allows inch EDP NO. for improved chatter CUTTING LENGTH OVERALL SHANK Ti-NAMITE-X suppression along with DIAMETER OF CUT LENGTH DIAMETER STEELS improved surface finish D1 L2 L1 D2 and enhanced tool life 1/8 3/4 2-1/4 1/8 70470 STAINLESS STEELS • Raised land and 1/8 1 3 1/8 70471 CAST IRON increased core diameter designed to enhance tool 3/16 3/4 2-1/2 3/16 70472 HIGH TEMP ALLOYS life and decrease tool 3/16 1-1/8 3 3/16 70473 deflection TITANIUM • Recommended for 1/4 1-1/8 3 1/4 70474 materials ≤ 45 HRc 1/4 1-1/2 4 1/4 70475 HARDENED STEELS (≤ 420 Bhn) 5/16 1-1/8 3 5/16 70476 5/16 1-5/8 4 5/16 70477 For patent 3/8 1-1/8 3 3/8 70478 information visit www.ksptpatents.com 3/8 1-3/4 4 3/8 70479 7/16 2 4-1/2 7/16 70480 7/16 3 6 7/16 70481 1/2 2 4-1/2 1/2 70482 1/2 3 6 1/2 70483 5/8 2-1/4 5 5/8 70484 5/8 3 6 5/8 70485 3/4 2-1/4 5 3/4 70486 3/4 3 6 3/4 70487 1 2-1/4 5 1 70488 1 3 6 1 70489 98 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
