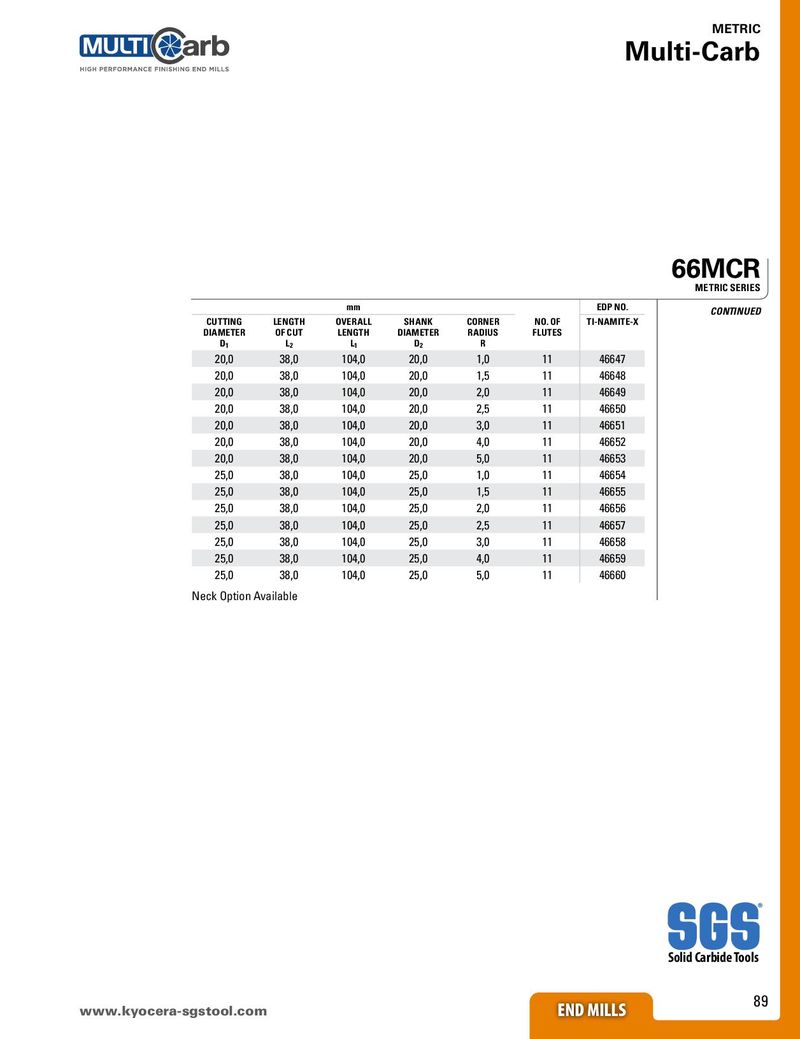

METRIC Multi-Carb 66MCR METRIC SERIES mm EDP NO. CONTINUED CUTTING LENGTH OVERALL SHANK CORNER NO. OF TI-NAMITE-X DIAMETER OF CUT LENGTH DIAMETER RADIUS FLUTES D1 L2 L1 D2 R 20,0 38,0 104,0 20,0 1,0 11 46647 20,0 38,0 104,0 20,0 1,5 11 46648 20,0 38,0 104,0 20,0 2,0 11 46649 20,0 38,0 104,0 20,0 2,5 11 46650 20,0 38,0 104,0 20,0 3,0 11 46651 20,0 38,0 104,0 20,0 4,0 11 46652 20,0 38,0 104,0 20,0 5,0 11 46653 25,0 38,0 104,0 25,0 1,0 11 46654 25,0 38,0 104,0 25,0 1,5 11 46655 25,0 38,0 104,0 25,0 2,0 11 46656 25,0 38,0 104,0 25,0 2,5 11 46657 25,0 38,0 104,0 25,0 3,0 11 46658 25,0 38,0 104,0 25,0 4,0 11 46659 25,0 38,0 104,0 25,0 5,0 11 46660 Neck Option Available Solid Carbide Tools www.kyocerEaN-DsgMstILoLoSl.com END MILLS 89
