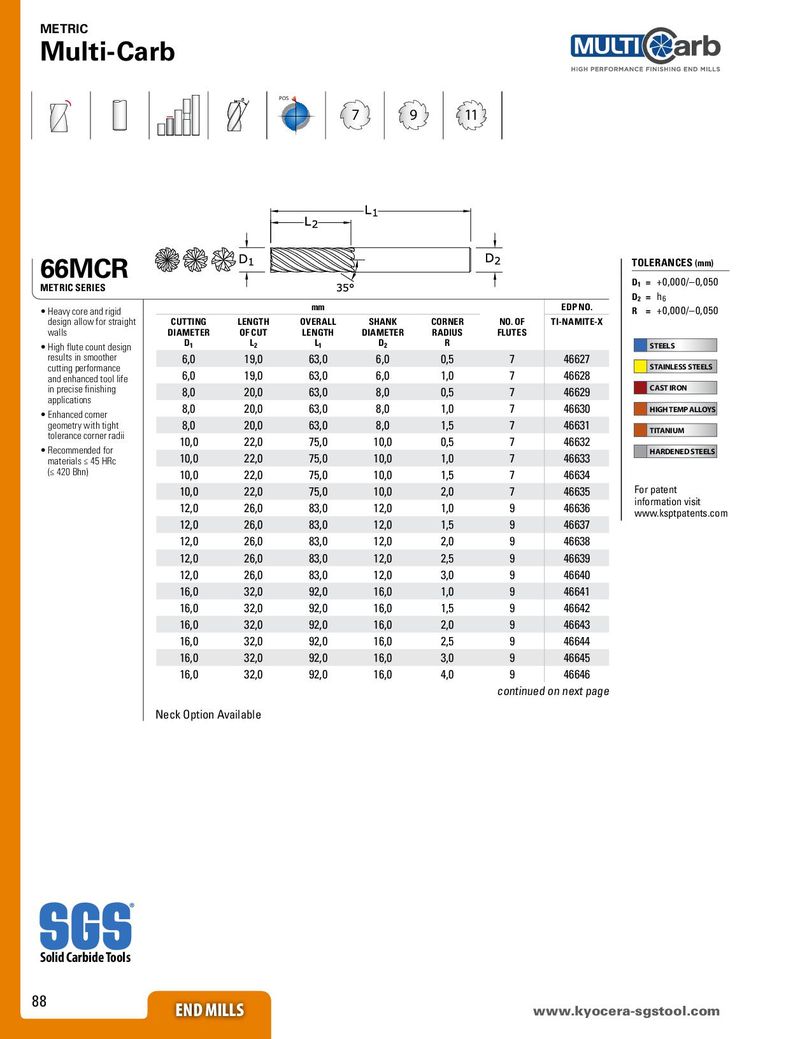

METRIC Multi-Carb POS 7 9 11 66MCR TOLERANCES (mm) METRIC SERIES D1 = +0,000/–0,050 D2 = h6 • Heavy core and rigid mm EDP NO. R = +0,000/–0,050 design allow for straight CUTTING LENGTH OVERALL SHANK CORNER NO. OF TI-NAMITE-X walls DIAMETER OF CUT LENGTH DIAMETER RADIUS FLUTES • High flute count design D1 L2 L1 D2 R STEELS results in smoother 6,0 19,0 63,0 6,0 0,5 7 46627 cutting performance 6,0 19,0 63,0 6,0 1,0 7 46628 STAINLESS STEELS and enhanced tool life in precise finishing 8,0 20,0 63,0 8,0 0,5 7 46629 CAST IRON applications 8,0 20,0 63,0 8,0 1,0 7 46630 • Enhanced corner HIGH TEMP ALLOYS geometry with tight 8,0 20,0 63,0 8,0 1,5 7 46631 TITANIUM tolerance corner radii 10,0 22,0 75,0 10,0 0,5 7 46632 • Recommended for 10,0 22,0 75,0 10,0 1,0 7 46633 HARDENED STEELS materials ≤ 45 HRc (≤ 420 Bhn) 10,0 22,0 75,0 10,0 1,5 7 46634 10,0 22,0 75,0 10,0 2,0 7 46635 For patent 12,0 26,0 83,0 12,0 1,0 9 46636 information visit www.ksptpatents.com 12,0 26,0 83,0 12,0 1,5 9 46637 12,0 26,0 83,0 12,0 2,0 9 46638 12,0 26,0 83,0 12,0 2,5 9 46639 12,0 26,0 83,0 12,0 3,0 9 46640 16,0 32,0 92,0 16,0 1,0 9 46641 16,0 32,0 92,0 16,0 1,5 9 46642 16,0 32,0 92,0 16,0 2,0 9 46643 16,0 32,0 92,0 16,0 2,5 9 46644 16,0 32,0 92,0 16,0 3,0 9 46645 16,0 32,0 92,0 16,0 4,0 9 46646 continued on next page Neck Option Available Solid Carbide Tools 88 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
