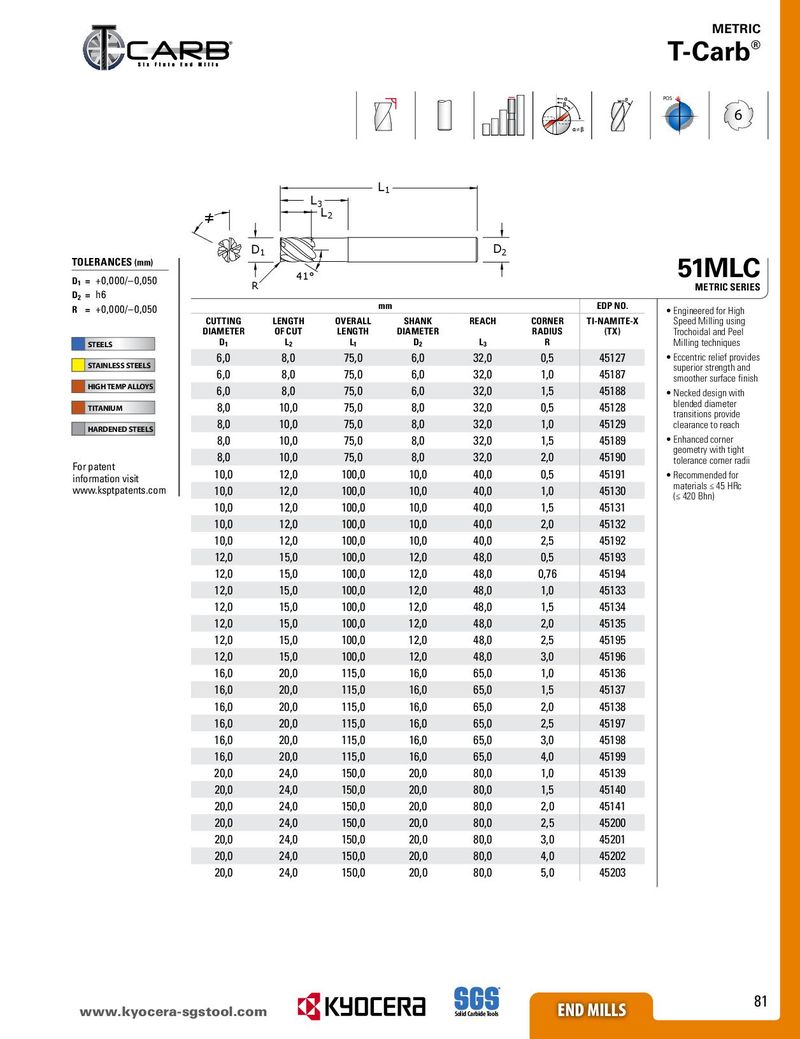

METRIC ® T-Carb® POS 6 ≠ L1 L 3 ≠ L 2 D1 D2 TOLERANCES (mm) 51MLC D1 = +0,000/–0,050 41° h6 R METRIC SERIES D2 = R = +0,000/–0,050 mm EDP NO. • Engineered for High CUTTING LENGTH OVERALL SHANK REACH CORNER TI-NAMITE-X Speed Milling using DIAMETER OF CUT LENGTH DIAMETER RADIUS (TX) Trochoidal and Peel STEELS D1 L2 L1 D2 L3 R Milling techniques 6,0 8,0 75,0 6,0 32,0 0,5 45127 • Eccentric relief provides STAINLESS STEELS 6,0 8,0 75,0 6,0 32,0 1,0 45187 superior strength and smoother surface finish HIGH TEMP ALLOYS 6,0 8,0 75,0 6,0 32,0 1,5 45188 • Necked design with TITANIUM 8,0 10,0 75,0 8,0 32,0 0,5 45128 blended diameter transitions provide HARDENED STEELS 8,0 10,0 75,0 8,0 32,0 1,0 45129 clearance to reach 8,0 10,0 75,0 8,0 32,0 1,5 45189 • Enhanced corner 8,0 10,0 75,0 8,0 32,0 2,0 45190 geometry with tight For patent tolerance corner radii information visit 10,0 12,0 100,0 10,0 40,0 0,5 45191 • Recommended for www.ksptpatents.com 10,0 12,0 100,0 10,0 40,0 1,0 45130 materials ≤ 45 HRc (≤ 420 Bhn) 10,0 12,0 100,0 10,0 40,0 1,5 45131 10,0 12,0 100,0 10,0 40,0 2,0 45132 10,0 12,0 100,0 10,0 40,0 2,5 45192 12,0 15,0 100,0 12,0 48,0 0,5 45193 12,0 15,0 100,0 12,0 48,0 0,76 45194 12,0 15,0 100,0 12,0 48,0 1,0 45133 12,0 15,0 100,0 12,0 48,0 1,5 45134 12,0 15,0 100,0 12,0 48,0 2,0 45135 12,0 15,0 100,0 12,0 48,0 2,5 45195 12,0 15,0 100,0 12,0 48,0 3,0 45196 16,0 20,0 115,0 16,0 65,0 1,0 45136 16,0 20,0 115,0 16,0 65,0 1,5 45137 16,0 20,0 115,0 16,0 65,0 2,0 45138 16,0 20,0 115,0 16,0 65,0 2,5 45197 16,0 20,0 115,0 16,0 65,0 3,0 45198 16,0 20,0 115,0 16,0 65,0 4,0 45199 20,0 24,0 150,0 20,0 80,0 1,0 45139 20,0 24,0 150,0 20,0 80,0 1,5 45140 20,0 24,0 150,0 20,0 80,0 2,0 45141 20,0 24,0 150,0 20,0 80,0 2,5 45200 20,0 24,0 150,0 20,0 80,0 3,0 45201 20,0 24,0 150,0 20,0 80,0 4,0 45202 20,0 24,0 150,0 20,0 80,0 5,0 45203 www.kyocerEaN-DsgMstILoLoSl.com END MILLS 81 Solid Carbide Tools
