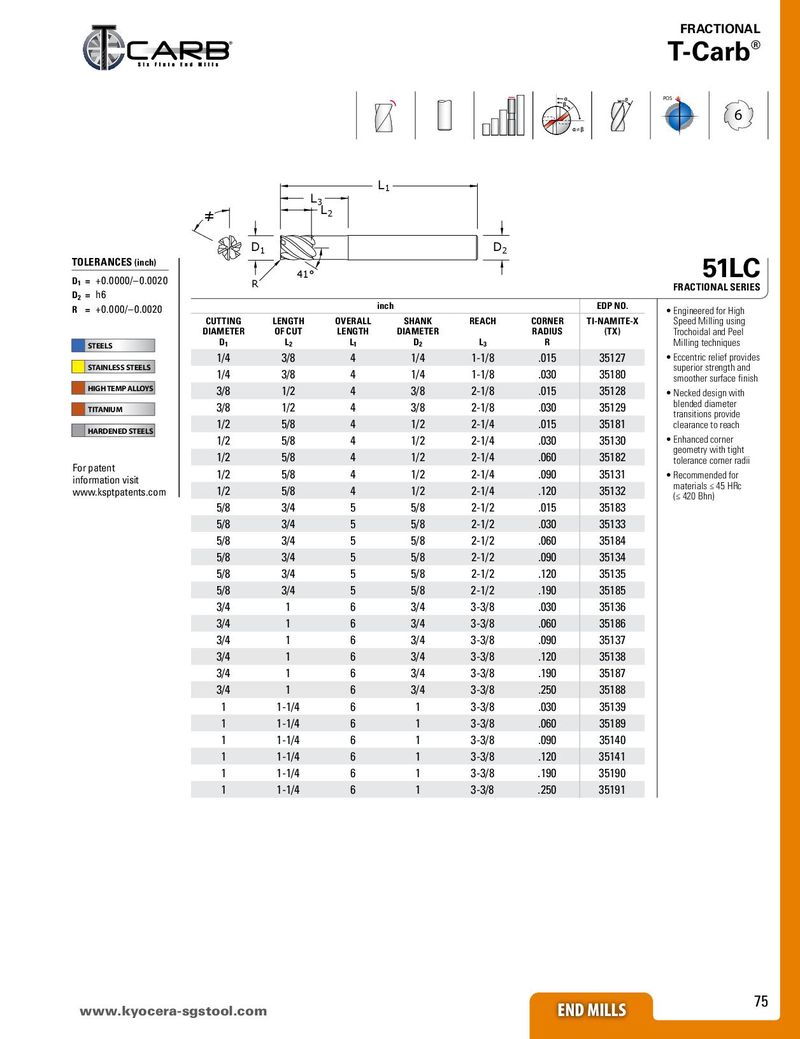

FRACTIONAL ® T-Carb® POS 6 ≠ L1 L 3 ≠ L 2 D1 D2 TOLERANCES (inch) 51LC D1 = +0.0000/–0.0020 41° R FRACTIONAL SERIES D2 = h6 R = +0.000/–0.0020 inch EDP NO. • Engineered for High CUTTING LENGTH OVERALL SHANK REACH CORNER TI-NAMITE-X Speed Milling using DIAMETER OF CUT LENGTH DIAMETER RADIUS (TX) Trochoidal and Peel STEELS D1 L2 L1 D2 L3 R Milling techniques 1/4 3/8 4 1/4 1-1/8 .015 35127 • Eccentric relief provides STAINLESS STEELS 1/4 3/8 4 1/4 1-1/8 .030 35180 superior strength and smoother surface finish HIGH TEMP ALLOYS 3/8 1/2 4 3/8 2-1/8 .015 35128 • Necked design with TITANIUM 3/8 1/2 4 3/8 2-1/8 .030 35129 blended diameter transitions provide HARDENED STEELS 1/2 5/8 4 1/2 2-1/4 .015 35181 clearance to reach 1/2 5/8 4 1/2 2-1/4 .030 35130 • Enhanced corner 1/2 5/8 4 1/2 2-1/4 .060 35182 geometry with tight For patent tolerance corner radii information visit 1/2 5/8 4 1/2 2-1/4 .090 35131 • Recommended for www.ksptpatents.com 1/2 5/8 4 1/2 2-1/4 .120 35132 materials ≤ 45 HRc (≤ 420 Bhn) 5/8 3/4 5 5/8 2-1/2 .015 35183 5/8 3/4 5 5/8 2-1/2 .030 35133 5/8 3/4 5 5/8 2-1/2 .060 35184 5/8 3/4 5 5/8 2-1/2 .090 35134 5/8 3/4 5 5/8 2-1/2 .120 35135 5/8 3/4 5 5/8 2-1/2 .190 35185 3/4 1 6 3/4 3-3/8 .030 35136 3/4 1 6 3/4 3-3/8 .060 35186 3/4 1 6 3/4 3-3/8 .090 35137 3/4 1 6 3/4 3-3/8 .120 35138 3/4 1 6 3/4 3-3/8 .190 35187 3/4 1 6 3/4 3-3/8 .250 35188 1 1-1/4 6 1 3-3/8 .030 35139 1 1-1/4 6 1 3-3/8 .060 35189 1 1-1/4 6 1 3-3/8 .090 35140 1 1-1/4 6 1 3-3/8 .120 35141 1 1-1/4 6 1 3-3/8 .190 35190 1 1-1/4 6 1 3-3/8 .250 35191 www.kyocerEaN-DsgMstILoLoSl.com END MILLS 75
