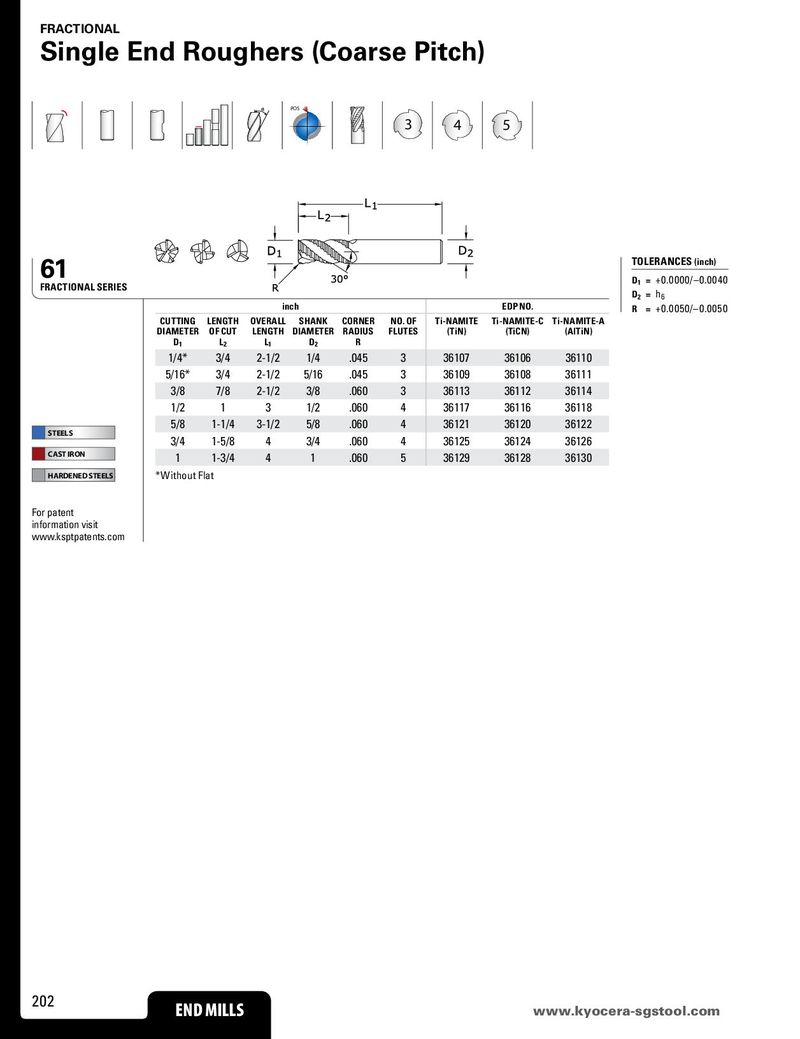

FRACTIONAL Single End Roughers (Coarse Pitch) POS 3 4 5 61 TOLERANCES (inch) FRACTIONAL SERIES D1 = +0.0000/–0.0040 D2 = h6 inch EDP NO. R = +0.0050/–0.0050 CUTTING LENGTH OVERALL SHANK CORNER NO. OF Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER RADIUS FLUTES (TiN) (TiCN) (AlTiN) D1 L2 L1 D2 R 1/4* 3/4 2-1/2 1/4 .045 3 36107 36106 36110 5/16* 3/4 2-1/2 5/16 .045 3 36109 36108 36111 3/8 7/8 2-1/2 3/8 .060 3 36113 36112 36114 1/2 1 3 1/2 .060 4 36117 36116 36118 STEELS 5/8 1-1/4 3-1/2 5/8 .060 4 36121 36120 36122 3/4 1-5/8 4 3/4 .060 4 36125 36124 36126 CAST IRON 1 1-3/4 4 1 .060 5 36129 36128 36130 HARDENED STEELS *Without Flat For patent information visit www.ksptpatents.com 202 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
