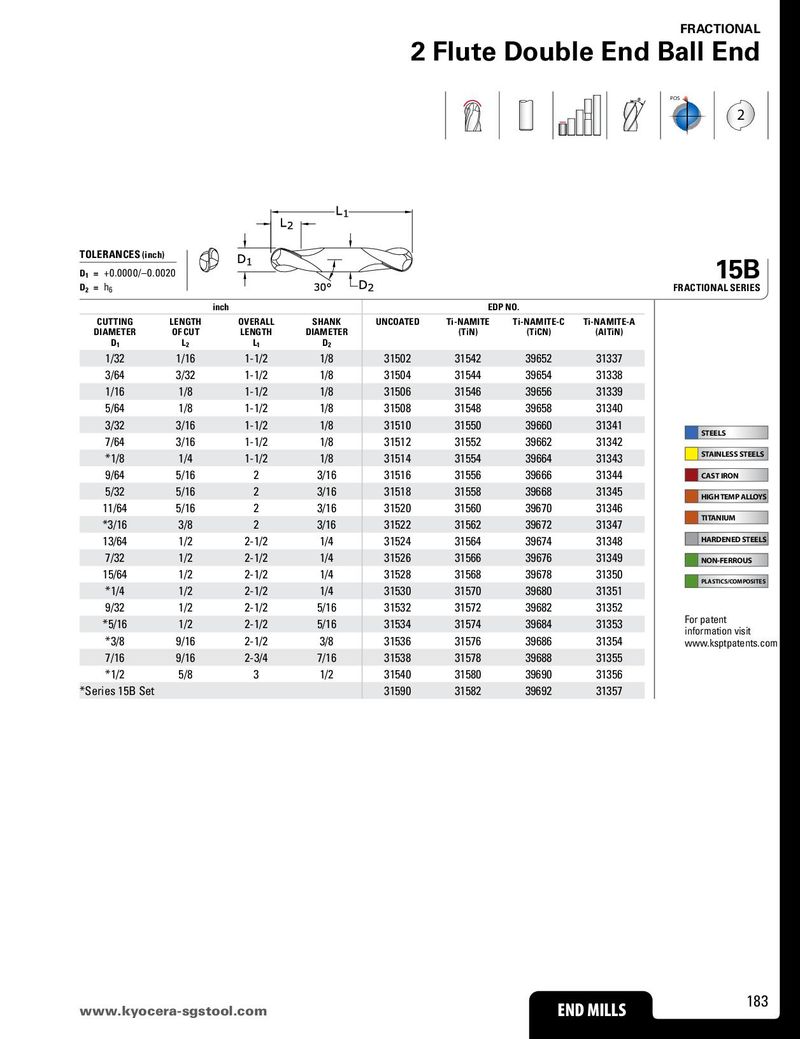

FRACTIONAL 2 Flute Double End Ball End POS 2 TOLERANCES (inch) 15B D1 = +0.0000/–0.0020 D2 = h6 FRACTIONAL SERIES inch EDP NO. CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) D1 L2 L1 D2 1/32 1/16 1-1/2 1/8 31502 31542 39652 31337 3/64 3/32 1-1/2 1/8 31504 31544 39654 31338 1/16 1/8 1-1/2 1/8 31506 31546 39656 31339 5/64 1/8 1-1/2 1/8 31508 31548 39658 31340 3/32 3/16 1-1/2 1/8 31510 31550 39660 31341 STEELS 7/64 3/16 1-1/2 1/8 31512 31552 39662 31342 *1/8 1/4 1-1/2 1/8 31514 31554 39664 31343 STAINLESS STEELS 9/64 5/16 2 3/16 31516 31556 39666 31344 CAST IRON 5/32 5/16 2 3/16 31518 31558 39668 31345 HIGH TEMP ALLOYS 11/64 5/16 2 3/16 31520 31560 39670 31346 *3/16 3/8 2 3/16 31522 31562 39672 31347 TITANIUM 13/64 1/2 2-1/2 1/4 31524 31564 39674 31348 HARDENED STEELS 7/32 1/2 2-1/2 1/4 31526 31566 39676 31349 NON-FERROUS 15/64 1/2 2-1/2 1/4 31528 31568 39678 31350 PLASTICS/COMPOSITES *1/4 1/2 2-1/2 1/4 31530 31570 39680 31351 9/32 1/2 2-1/2 5/16 31532 31572 39682 31352 *5/16 1/2 2-1/2 5/16 31534 31574 39684 31353 For patent *3/8 9/16 2-1/2 3/8 31536 31576 39686 31354 information visit www.ksptpatents.com 7/16 9/16 2-3/4 7/16 31538 31578 39688 31355 *1/2 5/8 3 1/2 31540 31580 39690 31356 *Series 15B Set 31590 31582 39692 31357 www.kyocerEaN-DsgMstILoLoSl.com END MILLS 183
