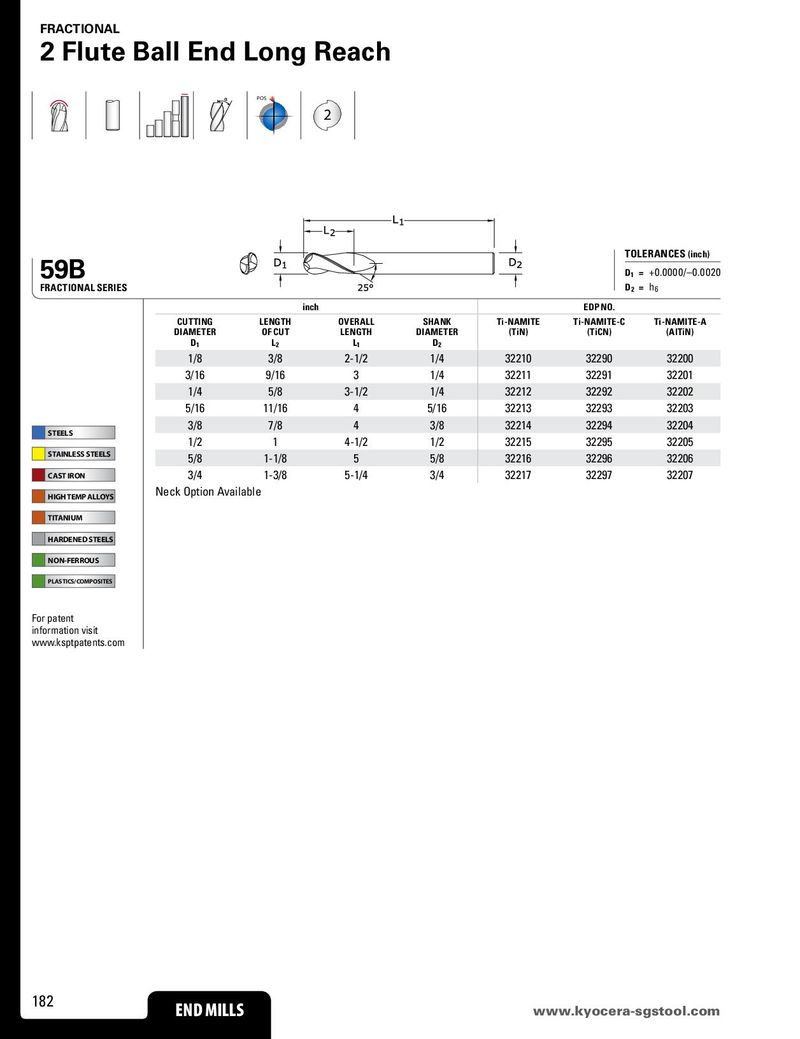

FRACTIONAL 2 Flute Ball End Long Reach POS 2 59B TOLERANCES (inch) D1 = +0.0000/–0.0020 FRACTIONAL SERIES D2 = h6 inch EDP NO. CUTTING LENGTH OVERALL SHANK Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) D1 L2 L1 D2 1/8 3/8 2-1/2 1/4 32210 32290 32200 3/16 9/16 3 1/4 32211 32291 32201 1/4 5/8 3-1/2 1/4 32212 32292 32202 5/16 11/16 4 5/16 32213 32293 32203 STEELS 3/8 7/8 4 3/8 32214 32294 32204 1/2 1 4-1/2 1/2 32215 32295 32205 STAINLESS STEELS 5/8 1-1/8 5 5/8 32216 32296 32206 CAST IRON 3/4 1-3/8 5-1/4 3/4 32217 32297 32207 HIGH TEMP ALLOYS Neck Option Available TITANIUM HARDENED STEELS NON-FERROUS PLASTICS/COMPOSITES For patent information visit www.ksptpatents.com 182 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
