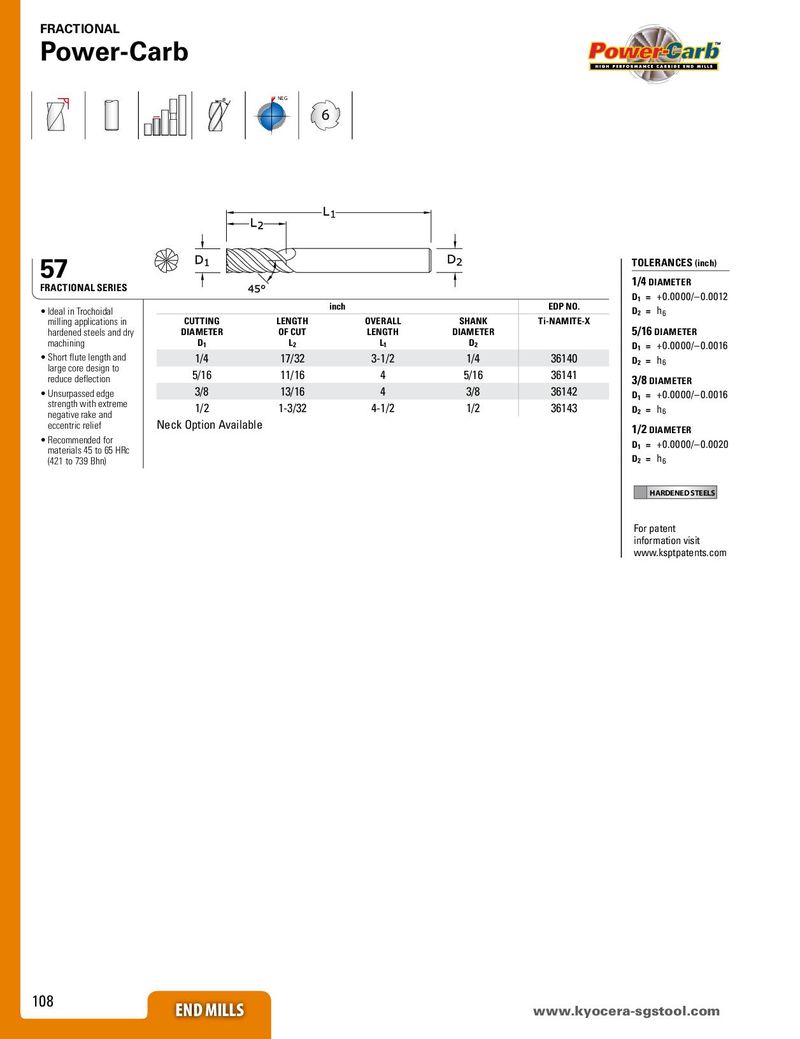

FRACTIONAL Power-Carb NEG 6 57 TOLERANCES (inch) FRACTIONAL SERIES 1/4 DIAMETER D1 = +0.0000/–0.0012 • Ideal in Trochoidal inch EDP NO. D2 = h6 milling applications in CUTTING LENGTH OVERALL SHANK Ti-NAMITE-X 5/16 DIAMETER hardened steels and dry DIAMETER OF CUT LENGTH DIAMETER machining D1 L2 L1 D2 D1 = +0.0000/–0.0016 • Short flute length and 1/4 17/32 3-1/2 1/4 36140 D2 = h6 large core design to 5/16 11/16 4 5/16 36141 reduce deflection 3/8 DIAMETER • Unsurpassed edge 3/8 13/16 4 3/8 36142 D1 = +0.0000/–0.0016 strength with extreme 1/2 1-3/32 4-1/2 1/2 36143 D2 = h6 negative rake and eccentric relief Neck Option Available 1/2 DIAMETER • Recommended for D1 = +0.0000/–0.0020 materials 45 to 65 HRc D2 = h6 (421 to 739 Bhn) HARDENED STEELS For patent information visit www.ksptpatents.com 108 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
