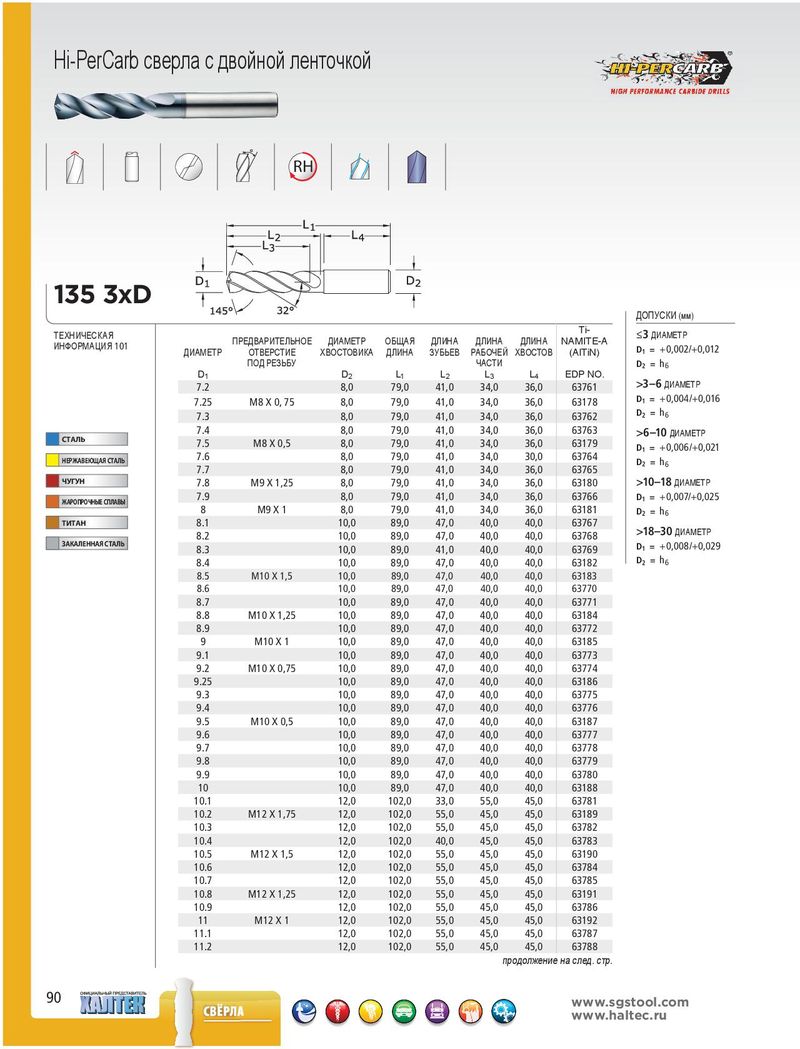

Hi-PerCarb сверла с двойной ленточкой RH 135 3xD ДОПУСКИ (мм) ТЕХНИЧЕСКАЯ Ti- ≤3 ДИАМЕТР ИНФОРМАЦИЯ 101 ПРЕДВАРИТЕЛЬНОЕ ДИАМЕТР ОБЩАЯ ДЛИНА ДЛИНА ДЛИНА NAMITE-A D1 = +0,002/+0,012 ДИАМЕТР ОТВЕРСТИЕ ХВОСТОВИКА ДЛИНА ЗУБЬЕВ РАБОЧЕЙ ХВОСТОВ (AlTiN) ПОД РЕЗЬБУ ЧАСТИ D2 = h6 D1 D2 L1 L2 L3 L4 EDP NO. >3–6 ДИАМЕТР 7.2 8,0 79,0 41,0 34,0 36,0 63761 7.25 M8 X 0, 75 8,0 79,0 41,0 34,0 36,0 63178 D1 = +0,004/+0,016 7.3 8,0 79,0 41,0 34,0 36,0 63762 D2 = h6 7.4 8,0 79,0 41,0 34,0 36,0 63763 >6–10 ДИАМЕТР СТАЛЬ 7.5 M8 X 0,5 8,0 79,0 41,0 34,0 36,0 63179 D1 = +0,006/+0,021 НЕРЖАВЕЮЩАЯ СТАЛЬ 7.6 8,0 79,0 41,0 34,0 30,0 63764 D2 = h6 7.7 8,0 79,0 41,0 34,0 36,0 63765 ЧУГУН 7.8 M9 X 1,25 8,0 79,0 41,0 34,0 36,0 63180 >10–18 ДИАМЕТР ЖАРОПРОЧНЫЕ СПЛАВЫ 7.9 8,0 79,0 41,0 34,0 36,0 63766 D1 = +0,007/+0,025 8 M9 X 1 8,0 79,0 41,0 34,0 36,0 63181 D2 = h6 ТИТАН 8.1 10,0 89,0 47,0 40,0 40,0 63767 >18–30 ДИАМЕТР ЗАКАЛЕННАЯ СТАЛЬ 8.2 10,0 89,0 47,0 40,0 40,0 63768 8.3 10,0 89,0 41,0 40,0 40,0 63769 D1 = +0,008/+0,029 8.4 10,0 89,0 47,0 40,0 40,0 63182 D2 = h6 8.5 M10 X 1,5 10,0 89,0 47,0 40,0 40,0 63183 8.6 10,0 89,0 47,0 40,0 40,0 63770 8.7 10,0 89,0 47,0 40,0 40,0 63771 8.8 M10 X 1,25 10,0 89,0 47,0 40,0 40,0 63184 8.9 10,0 89,0 47,0 40,0 40,0 63772 9 M10 X 1 10,0 89,0 47,0 40,0 40,0 63185 9.1 10,0 89,0 47,0 40,0 40,0 63773 9.2 M10 X 0,75 10,0 89,0 47,0 40,0 40,0 63774 9.25 10,0 89,0 47,0 40,0 40,0 63186 9.3 10,0 89,0 47,0 40,0 40,0 63775 9.4 10,0 89,0 47,0 40,0 40,0 63776 9.5 M10 X 0,5 10,0 89,0 47,0 40,0 40,0 63187 9.6 10,0 89,0 47,0 40,0 40,0 63777 9.7 10,0 89,0 47,0 40,0 40,0 63778 9.8 10,0 89,0 47,0 40,0 40,0 63779 9.9 10,0 89,0 47,0 40,0 40,0 63780 10 10,0 89,0 47,0 40,0 40,0 63188 10.1 12,0 102,0 33,0 55,0 45,0 63781 10.2 M12 X 1,75 12,0 102,0 55,0 45,0 45,0 63189 10.3 12,0 102,0 55,0 45,0 45,0 63782 10.4 12,0 102,0 40,0 45,0 45,0 63783 10.5 M12 X 1,5 12,0 102,0 55,0 45,0 45,0 63190 10.6 12,0 102,0 55,0 45,0 45,0 63784 10.7 12,0 102,0 55,0 45,0 45,0 63785 10.8 M12 X 1,25 12,0 102,0 55,0 45,0 45,0 63191 10.9 12,0 102,0 55,0 45,0 45,0 63786 11 M12 X 1 12,0 102,0 55,0 45,0 45,0 63192 11.1 12,0 102,0 55,0 45,0 45,0 63787 11.2 12,0 102,0 55,0 45,0 45,0 63788 продолжение на след. стр. 90 www.sgstool.com www.haltec.ru
