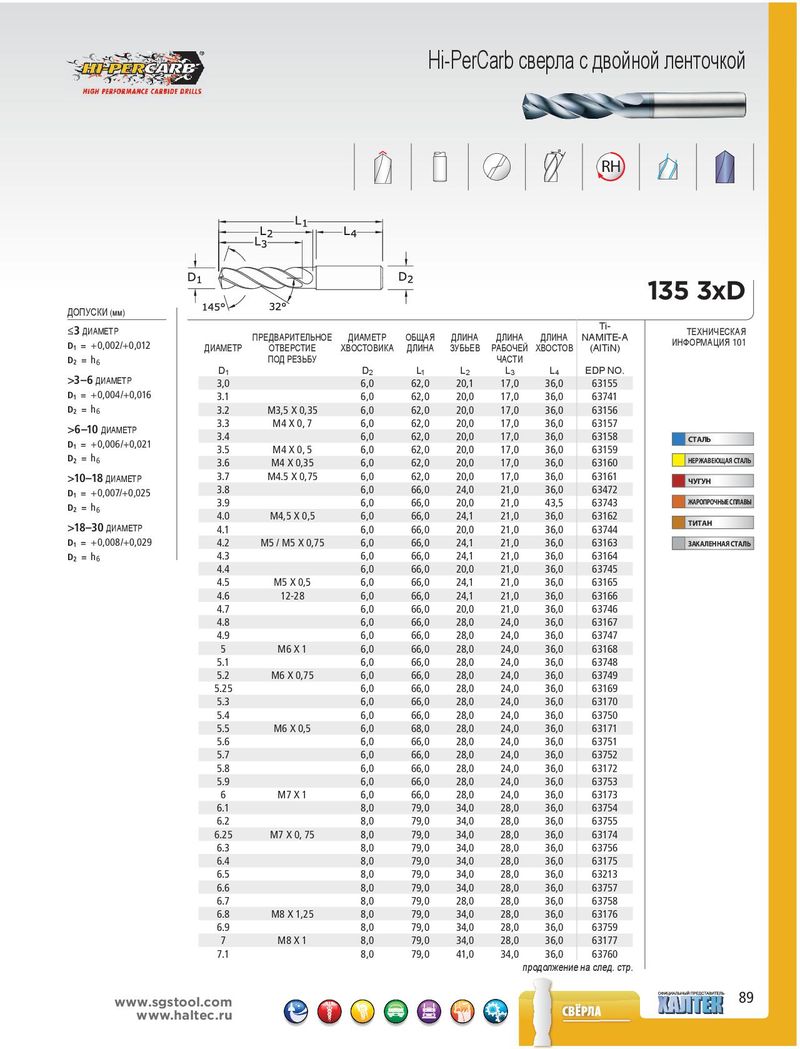

Hi-PerCarb сверла с двойной ленточкой RH 135 3xD ДОПУСКИ (мм) ≤3 ДИАМЕТР Ti- ТЕХНИЧЕСКАЯ D1 = +0,002/+0,012 ПРЕДВАРИТЕЛЬНОЕ ДИАМЕТР ОБЩАЯ ДЛИНА ДЛИНА ДЛИНА NAMITE-A ИНФОРМАЦИЯ 101 ДИАМЕТР ОТВЕРСТИЕ ХВОСТОВИКА ДЛИНА ЗУБЬЕВ РАБОЧЕЙ ХВОСТОВ (AlTiN) D2 = h6 ПОД РЕЗЬБУ ЧАСТИ D1 D2 L1 L2 L3 L4 EDP NO. >3–6 ДИАМЕТР 3,0 6,0 62,0 20,1 17,0 36,0 63155 D1 = +0,004/+0,016 3.1 6,0 62,0 20,0 17,0 36,0 63741 D2 = h6 3.2 M3,5 X 0,35 6,0 62,0 20,0 17,0 36,0 63156 >6–10 ДИАМЕТР 3.3 M4 X 0, 7 6,0 62,0 20,0 17,0 36,0 63157 D1 = +0,006/+0,021 3.4 6,0 62,0 20,0 17,0 36,0 63158 СТАЛЬ h6 3.5 M4 X 0, 5 6,0 62,0 20,0 17,0 36,0 63159 D2 = 3.6 M4 X 0,35 6,0 62,0 20,0 17,0 36,0 63160 НЕРЖАВЕЮЩАЯ СТАЛЬ >10–18 ДИАМЕТР 3.7 M4.5 X 0,75 6,0 62,0 20,0 17,0 36,0 63161 ЧУГУН D1 = +0,007/+0,025 3.8 6,0 66,0 24,0 21,0 36,0 63472 D2 = h6 3.9 6,0 66,0 20,0 21,0 43,5 63743 ЖАРОПРОЧНЫЕ СПЛАВЫ 4.0 M4,5 X 0,5 6,0 66,0 24,1 21,0 36,0 63162 ТИТАН >18–30 ДИАМЕТР 4.1 6,0 66,0 20,0 21,0 36,0 63744 D1 = +0,008/+0,029 4.2 M5 / M5 X 0,75 6,0 66,0 24,1 21,0 36,0 63163 ЗАКАЛЕННАЯ СТАЛЬ D2 = h6 4.3 6,0 66,0 24,1 21,0 36,0 63164 4.4 6,0 66,0 20,0 21,0 36,0 63745 4.5 M5 X 0,5 6,0 66,0 24,1 21,0 36,0 63165 4.6 12-28 6,0 66,0 24,1 21,0 36,0 63166 4.7 6,0 66,0 20,0 21,0 36,0 63746 4.8 6,0 66,0 28,0 24,0 36,0 63167 4.9 6,0 66,0 28,0 24,0 36,0 63747 5 M6 X 1 6,0 66,0 28,0 24,0 36,0 63168 5.1 6,0 66,0 28,0 24,0 36,0 63748 5.2 M6 X 0,75 6,0 66,0 28,0 24,0 36,0 63749 5.25 6,0 66,0 28,0 24,0 36,0 63169 5.3 6,0 66,0 28,0 24,0 36,0 63170 5.4 6,0 66,0 28,0 24,0 36,0 63750 5.5 M6 X 0,5 6,0 68,0 28,0 24,0 36,0 63171 5.6 6,0 66,0 28,0 24,0 36,0 63751 5.7 6,0 66,0 28,0 24,0 36,0 63752 5.8 6,0 66,0 28,0 24,0 36,0 63172 5.9 6,0 66,0 28,0 24,0 36,0 63753 6 M7 X 1 6,0 66,0 28,0 24,0 36,0 63173 6.1 8,0 79,0 34,0 28,0 36,0 63754 6.2 8,0 79,0 34,0 28,0 36,0 63755 6.25 M7 X 0, 75 8,0 79,0 34,0 28,0 36,0 63174 6.3 8,0 79,0 34,0 28,0 36,0 63756 6.4 8,0 79,0 34,0 28,0 36,0 63175 6.5 8,0 79,0 34,0 28,0 36,0 63213 6.6 8,0 79,0 34,0 28,0 36,0 63757 6.7 8,0 79,0 28,0 28,0 36,0 63758 6.8 M8 X 1,25 8,0 79,0 34,0 28,0 36,0 63176 6.9 8,0 79,0 34,0 28,0 36,0 63759 7 M8 X 1 8,0 79,0 34,0 28,0 36,0 63177 7.1 8,0 79,0 41,0 34,0 36,0 63760 продолжение на след. стр. www.sgstool.com 89 www.haltec.ru
