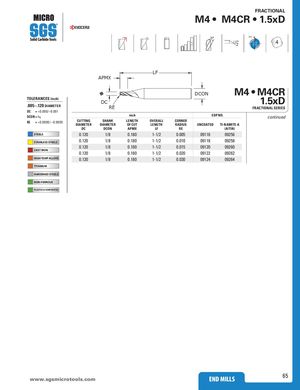

FRACTIONAL M4 • M4CR • 1.5xD 30° POS 15° 4 LF APMX DCON M4 • M4CR TOLERANCES (inch) DC 1.5xD .005–.120 DIAMETER RE FRACTIONAL SERIES DC = +0.000/–0.001 DCON = h6 inch EDP NO. continued RE = +0.0000 / –0.0005 CUTTING SHANK LENGTH OVERALL CORNER DIAMETER DIAMETER OF CUT LENGTH RADIUS UNCOATED TI-NAMITE-A DC DCON APMX LF RE (AlTiN) STEELS 0.120 1/8 0.180 1-1/2 0.005 09116 09256 STAINLESS STEELS 0.120 1/8 0.180 1-1/2 0.010 09118 09258 0.120 1/8 0.180 1-1/2 0.015 09120 09260 CAST IRON 0.120 1/8 0.180 1-1/2 0.020 09122 09262 HIGH TEMP ALLOYS 0.120 1/8 0.180 1-1/2 0.030 09124 09264 TITANIUM HARDENED STEELS NON-FERROUS PLASTICS/COMPOSITES www.sgsmicErNoDtoMoIlLsL.cSom END MILLS 65
