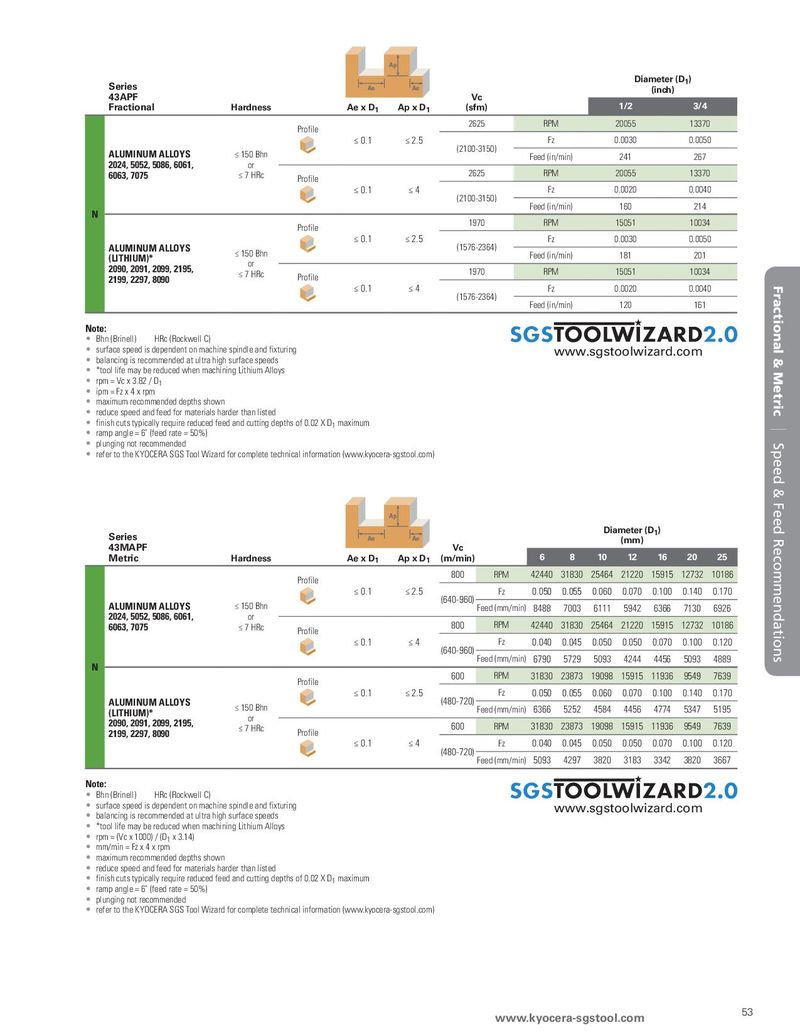

Ap Series Ae Ae Diameter (D1) 43APF Vc (inch) Fractional Hardness Ae x D1 Ap x D1 (sfm) 1/2 3/4 Profile 2625 RPM 20055 13370 ≤ 0.1 ≤ 2.5 (2100-3150) Fz 0.0030 0.0050 ALUMINUM ALLOYS ≤ 150 Bhn Feed (in/min) 241 267 2024, 5052, 5086, 6061, or 2625 RPM 20055 13370 6063, 7075 ≤ 7 HRc Profile ≤ 0.1 ≤4 (2100-3150) Fz 0.0020 0.0040 N Feed (in/min) 160 214 Profile 1970 RPM 15051 10034 ≤ 0.1 ≤ 2.5 (1576-2364) Fz 0.0030 0.0050 ALUMINUM ALLOYS ≤ 150 Bhn Feed (in/min) 181 201 (LITHIUM)* or 2090, 2091, 2099, 2195, ≤ 7 HRc Profile 1970 RPM 15051 10034 2199, 2297, 8090 ≤ 0.1 ≤4 (1576-2364) Fz 0.0020 0.0040 Fractional & Metric  Feed (in/min) 120 161 Note: •  Bhn (Brinell)   HRc (Rockwell C) •  surface speed is dependent on machine spindle and fixturing www.sgstoolwizard.com •  balancing is recommended at ultra high surface speeds •  *tool life may be reduced when machining Lithium Alloys •  rpm = Vc x 3.82 / D1 •  ipm = Fz x 4 x rpm •  maximum recommended depths shown •  reduce speed and feed for materials harder than listed •  finish cuts typically require reduced feed and cutting depths of 0.02 X D1 maximum •  ramp angle = 6˚ (feed rate = 50%) |  •  plunging not recommended Speed & Feed Recommendations •  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com) Ap Series Ae Ae Diameter (D1) 43MAPF Vc (mm) Metric Hardness Ae x D1 Ap x D1 (m/min) 6 8 10 12 16 20 25 Profile 800 RPM 42440 31830 25464 21220 15915 12732 10186 ≤ 0.1 ≤ 2.5 (640-960) Fz 0.050 0.055 0.060 0.070 0.100 0.140 0.170 ALUMINUM ALLOYS ≤ 150 Bhn Feed (mm/min) 8488 7003 6111 5942 6366 7130 6926 2024, 5052, 5086, 6061, or 800 RPM 42440 31830 25464 21220 15915 12732 10186 6063, 7075 ≤ 7 HRc Profile ≤ 0.1 ≤4 (640-960) Fz 0.040 0.045 0.050 0.050 0.070 0.100 0.120 N Feed (mm/min) 6790 5729 5093 4244 4456 5093 4889 Profile 600 RPM 31830 23873 19098 15915 11936 9549 7639 ≤ 0.1 ≤ 2.5 (480-720) Fz 0.050 0.055 0.060 0.070 0.100 0.140 0.170 ALUMINUM ALLOYS ≤ 150 Bhn Feed (mm/min) 6366 5252 4584 4456 4774 5347 5195 (LITHIUM)* or 2090, 2091, 2099, 2195, ≤ 7 HRc 600 RPM 31830 23873 19098 15915 11936 9549 7639 2199, 2297, 8090 Profile ≤ 0.1 ≤4 (480-720) Fz 0.040 0.045 0.050 0.050 0.070 0.100 0.120 Feed (mm/min) 5093 4297 3820 3183 3342 3820 3667 Note: •  Bhn (Brinell)   HRc (Rockwell C) •  surface speed is dependent on machine spindle and fixturing www.sgstoolwizard.com •  balancing is recommended at ultra high surface speeds •  *tool life may be reduced when machining Lithium Alloys •  rpm = (Vc x 1000) / (D1 x 3.14) •  mm/min = Fz x 4 x rpm •  maximum recommended depths shown •  reduce speed and feed for materials harder than listed •  finish cuts typically require reduced feed and cutting depths of 0.02 X D1 maximum •  ramp angle = 6˚ (feed rate = 50%) •  plunging not recommended •  refer to the KYOCERA SGS Tool Wizard for complete technical information (www.kyocera-sgstool.com) www.kyocera-sgstool.com 53
