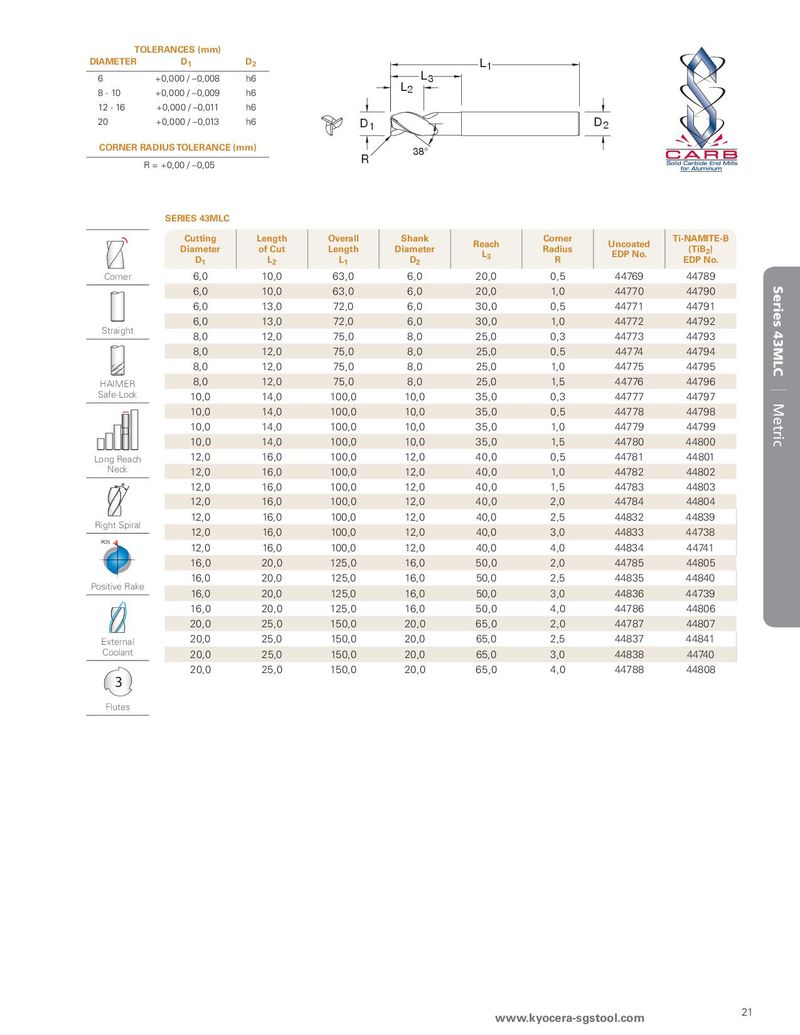

TOLERANCES (mm) DIAMETER D1 D2 L1 6 +0,000 / –0,008 h6 L2 L3 8 - 10 +0,000 / –0,009 h6 12 - 16 +0,000 / –0,011 h6 20 +0,000 / –0,013 h6 D1 D2 CORNER RADIUS TOLERANCE (mm) 38° R = +0,00 / –0,05 R SERIES 43MLC Cutting Length Overall Shank Reach Corner Uncoated Ti-NAMITE-B Diameter of Cut Length Diameter L3 Radius EDP No. (TiB2) D1 L2 L1 D2 R EDP No. Corner 6,0 10,0 63,0 6,0 20,0 0,5 44769 44789 6,0 10,0 63,0 6,0 20,0 1,0 44770 44790 Series 43MLC  6,0 13,0 72,0 6,0 30,0 0,5 44771 44791 6,0 13,0 72,0 6,0 30,0 1,0 44772 44792 Straight 8,0 12,0 75,0 8,0 25,0 0,3 44773 44793 8,0 12,0 75,0 8,0 25,0 0,5 44774 44794 8,0 12,0 75,0 8,0 25,0 1,0 44775 44795 HAIMER 8,0 12,0 75,0 8,0 25,0 1,5 44776 44796 Safe-Lock 10,0 14,0 100,0 10,0 35,0 0,3 44777 44797 |  10,0 14,0 100,0 10,0 35,0 0,5 44778 44798 Metric 10,0 14,0 100,0 10,0 35,0 1,0 44779 44799 10,0 14,0 100,0 10,0 35,0 1,5 44780 44800 Long Reach 12,0 16,0 100,0 12,0 40,0 0,5 44781 44801 Neck 12,0 16,0 100,0 12,0 40,0 1,0 44782 44802 12,0 16,0 100,0 12,0 40,0 1,5 44783 44803 12,0 16,0 100,0 12,0 40,0 2,0 44784 44804 Right Spiral 12,0 16,0 100,0 12,0 40,0 2,5 44832 44839 12,0 16,0 100,0 12,0 40,0 3,0 44833 44738 POS 12,0 16,0 100,0 12,0 40,0 4,0 44834 44741 16,0 20,0 125,0 16,0 50,0 2,0 44785 44805 Positive Rake 16,0 20,0 125,0 16,0 50,0 2,5 44835 44840 16,0 20,0 125,0 16,0 50,0 3,0 44836 44739 16,0 20,0 125,0 16,0 50,0 4,0 44786 44806 20,0 25,0 150,0 20,0 65,0 2,0 44787 44807 External 20,0 25,0 150,0 20,0 65,0 2,5 44837 44841 Coolant 20,0 25,0 150,0 20,0 65,0 3,0 44838 44740 20,0 25,0 150,0 20,0 65,0 4,0 44788 44808 3 Flutes www.kyocera-sgstool.com 21
