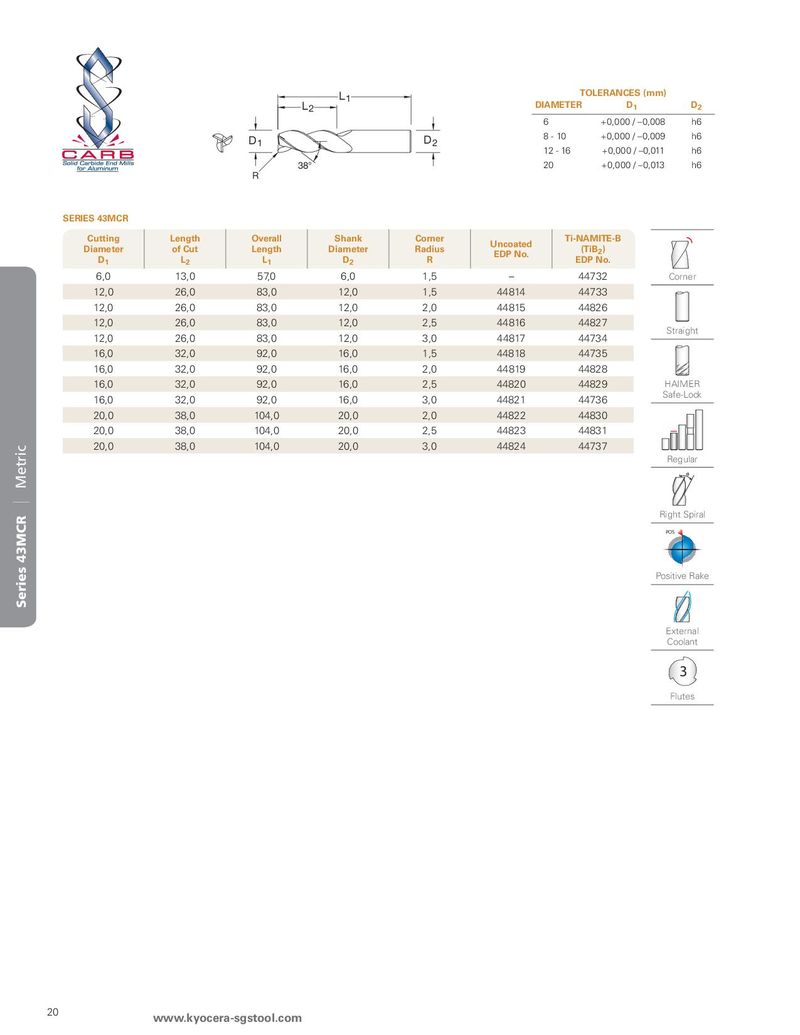

L1 TOLERANCES (mm) L2 DIAMETER D1 D2 6 +0,000 / –0,008 h6 D1 D2 8 - 10 +0,000 / –0,009 h6 12 - 16 +0,000 / –0,011 h6 38° 20 +0,000 / –0,013 h6 R SERIES 43MCR Cutting Length Overall Shank Corner Uncoated Ti-NAMITE-B Diameter of Cut Length Diameter Radius EDP No. (TiB2) D1 L2 L1 D2 R EDP No. 6,0 13,0 57,0 6,0 1,5 – 44732 Corner 12,0 26,0 83,0 12,0 1,5 44814 44733 12,0 26,0 83,0 12,0 2,0 44815 44826 12,0 26,0 83,0 12,0 2,5 44816 44827 Straight 12,0 26,0 83,0 12,0 3,0 44817 44734 16,0 32,0 92,0 16,0 1,5 44818 44735 16,0 32,0 92,0 16,0 2,0 44819 44828 16,0 32,0 92,0 16,0 2,5 44820 44829 HAIMER 16,0 32,0 92,0 16,0 3,0 44821 44736 Safe-Lock 20,0 38,0 104,0 20,0 2,0 44822 44830 20,0 38,0 104,0 20,0 2,5 44823 44831 Metric 20,0 38,0 104,0 20,0 3,0 44824 44737 Regular |  Series 43MCR  Right Spiral POS Positive Rake External Coolant 3 Flutes 20 www.kyocera-sgstool.com
