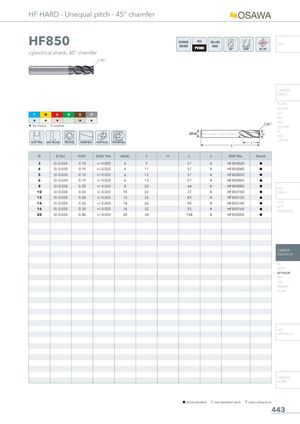

HF HARD - Unequal pitch - 45° chamfer HF850 OSAWANORM INFO cylindrical shank, 45° chamfer C45° CARBIDE DRILLS PU-HPU TA-4HTA P M K N S H SUH ALH H H H H HH 1st choiceI suitable C45° HRCSUH MINI HL HSD SLOTTING SIDE MILLING HELICAL RAMPING VERTICAL TROCHOIDAL C-SD-TA D D Tol. C45° C45° Tol. d(h6) l l1 L z EDP No. Stock 3 0/-0.030 0.10 +/-0.020 6 9 57 4 HF850030 h 4 0/-0.030 0.10 +/-0.020 6 11 57 4 HF850040 h 5 0/-0.030 0.10 +/-0.020 6 13 57 4 HF850050 h 6 0/-0.030 0.10 +/-0.020 6 13 57 4 HF850060 h 8 0/-0.030 0.20 +/-0.020 8 20 64 4 HF850080 h HSS 10 0/-0.030 0.20 +/-0.020 10 22 72 4 HF850100 h DRILLS 12 0/-0.030 0.20 +/-0.020 12 26 83 4 HF850120 h 14 0/-0.030 0.30 +/-0.020 14 26 90 4 HF850140 h LFTA 16 0/-0.030 0.30 +/-0.020 16 32 92 4 HF850160 h SUTAHSS-HSS/CO 20 0/-0.030 0.40 +/-0.020 20 38 104 4 HF850200 h CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 443
