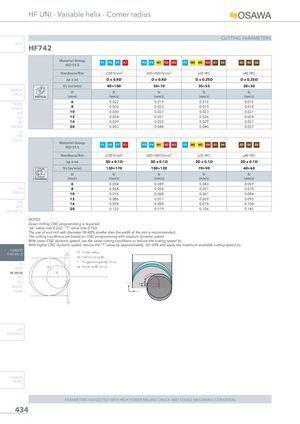

HF UNI - Variable helix - Corner radius CUTTING PARAMETERS INFO HF742 Material GroupISO 513 P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ≤40 HRC ap x ae D x 0.4D D x 0.4D D x 0.25D D x 0.25D Vc (m/min) 80÷100 50÷70 35÷55 20÷30 CARBIDEDRILLS VERTICAL D(mm) fz(mm/z) fz(mm/z) fz(mm/z) fz(mm/z) 6 0.022 0.019 0.016 0.015 PU-HPU TA-4HTA 8 0.026 0.023 0.019 0.018 SUH 10 0.030 0.027 0.023 0.021 ALH 12 0.034 0.031 0.026 0.024 HRC 16 0.039 0.035 0.029 0.027 SUH MINI 20 0.053 0.048 0.040 0.037 HL HSD C-SD-TA Material GroupISO 513 P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ≤40 HRC ap x ae 3D x 0.1D 3D x 0.1D 2D x 0.1D 2D x 0.1D Vc (m/min) 130÷170 100÷120 70÷90 40÷60 D fz fz fz fz TROCHOIDAL (mm) (mm/z) (mm/z) (mm/z) (mm/z) 6 0.054 0.049 0.043 0.059 HSS 8 0.064 0.058 0.051 0.070 DRILLS 10 0.076 0.068 0.061 0.084 12 0.086 0.077 0.069 0.095 LFTA 16 0.098 0.088 0.078 0.108 SUTAHSS-HSS/CO 20 0.132 0.119 0.106 0.145 NOTES: Down milling CNC programming is required. “ae” value max 0.2xD - “T” value max 0.1xD. The use of end mill with diameter 30-40% smaller than the width of the slot is recommended. The cutting conditions are based on CNC programming with medium dynamic speed. With lower CNC dynamic speed, use the same cutting conditions or reduce the cutting speed Vc. With higher CNC dynamic speed, reduce the “T” value by approximately -30 -50% and apply the maximum available cutting speed Vc. CARBIDE END-MILLS ae R1 Cutter radius R2 Half of slot width G2 T Programming width of cut MDTA ae Actual width of cut HF VH/UP MEF ALUMEX/MH Y (+) Y UH/MH X (+) T HSS END-MILLS CARBIDE BURRS PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION 434 R2 R1
