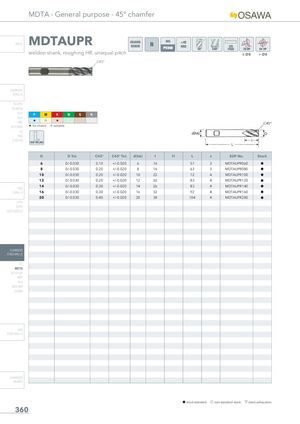

MDTA - General purpose - 45° chamfer INFO MDTAUPR OSAWANORM <45HRC weldon shank, roughing HR, unequal pitch ≤ Ø8 > Ø8 C45° CARBIDE DRILLS PU-HPU TA-4HTA SUH P M K N S H ALH HRC H I HSUH MINIH 1st choiceI suitable C45° HL HSD C-SD-TA SIDE MILLING D D Tol. C45° C45° Tol. d(h6) l l1 L z EDP No. Stock 6 0/-0.030 0.10 +/-0.020 6 16 57 3 MDTAUPR060 h 8 0/-0.030 0.20 +/-0.020 8 16 63 3 MDTAUPR080 h 10 0/-0.030 0.20 +/-0.020 10 22 72 4 MDTAUPR100 h 12 0/-0.030 0.20 +/-0.020 12 26 83 4 MDTAUPR120 h 14 0/-0.030 0.30 +/-0.020 14 26 83 4 MDTAUPR140 h HSS DRILLS 16 0/-0.030 0.30 +/-0.020 16 32 92 4 MDTAUPR160 h 20 0/-0.030 0.40 +/-0.020 20 38 104 4 MDTAUPR200 h LFTA SUTA HSS-HSS/CO CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 360
