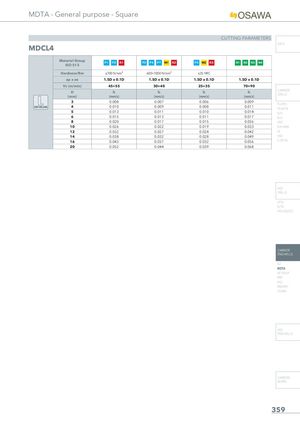

MDTA - General purpose - Square CUTTING PARAMETERS INFO MDCL4 Material GroupISO 513 P1 P2 K1 P3 P4 P7 M1 K2 P5 M2 K3 N1 N2 N3 N4 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ap x ae 1.5D x 0.1D 1.5D x 0.1D 1.5D x 0.1D 1.5D x 0.1D Vc (m/min) 45÷55 30÷40 25÷35 70÷90 D fz(mm)(mm/z) fz(mm/z) fz(mm/z) fz(mm/z) CARBIDEDRILLS 3 0.008 0.007 0.006 0.009 PU-HPU SIDE MILLING 4 0.010 0.009 0.008 0.011 TA-4HTA 5 0.013 0.011 0.010 0.014 SUH 6 0.015 0.013 0.011 0.017 ALH 8 0.020 0.017 0.015 0.026 HRC 10 0.026 0.022 0.019 0.033 SUH MINI 12 0.032 0.027 0.024 0.042 HL 14 0.038 0.032 0.028 0.049 HSD 16 0.043 0.037 0.032 0.056 C-SD-TA 20 0.052 0.044 0.039 0.068 HSS DRILLS LFTA SUTA HSS-HSS/CO CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS 359
