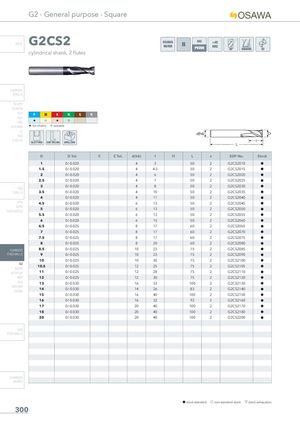

Общий каталог Osawa 2021 - страница 301

G2 - General purpose - Square INFO G2CS2 OSAWA <45NORMHRC cylindrical shank, 2 flutes CARBIDE DRILLS PU-HPU TA-4HTA SUH P M K N S H ALH HRC H I H I SUH MINI H 1st choice I suitable HL HSD C-SD-TA SLOTTING SIDE MILLING DRILLING D D Tol. C C Tol. d(h6) l l1 L z EDP No. Stock 1 0/-0.020 4 3 50 2 G2CS2010 h 1.5 0/-0.020 4 4.5 50 2 G2CS2015 h 2 0/-0.020 4 6 50 2 G2CS2020 h 2.5 0/-0.020 4 7 50 2 G2CS2025 h 3 0/-0.020 4 8 50 2 G2CS2030 h HSS DRILLS 3.5 0/-0.020 4 10 50 2 G2CS2035 h 4 0/-0.020 4 11 50 2 G2CS2040 h LFTA 4.5 0/-0.020 6 13 50 2 G2CS2045 h SUTAHSS-HSS/CO 5 0/-0.020 6 13 50 2 G2CS2050 h 5.5 0/-0.020 6 13 50 2 G2CS2055 h 6 0/-0.020 6 15 50 2 G2CS2060 h 6.5 0/-0.025 8 17 60 2 G2CS2065 h 7 0/-0.025 8 17 60 2 G2CS2070 h 7.5 0/-0.025 8 17 60 2 G2CS2075 h 8 0/-0.025 8 20 60 2 G2CS2080 h CARBIDE 8.5 0/-0.025 10 23 75 2 G2CS2085 h END-MILLS 9 0/-0.025 10 23 75 2 G2CS2090 h 10 0/-0.025 10 30 75 2 G2CS2100 h G2 10.5 0/-0.025 12 25 75 2 G2CS2105 h MDTA HF VH/UP 11 0/-0.025 12 28 75 2 G2CS2110 h MEF 12 0/-0.025 12 30 75 2 G2CS2120 h ALU 13 0/-0.030 16 33 100 2 G2CS2130 h MEX/MHUH/MH 14 0/-0.030 14 26 83 2 G2CS2140 h 15 0/-0.030 16 40 100 2 G2CS2150 h 16 0/-0.030 16 32 92 2 G2CS2160 h 17 0/-0.030 20 40 100 2 G2CS2170 h 18 0/-0.030 20 40 100 2 G2CS2180 h 20 0/-0.030 20 40 100 2 G2CS2200 h HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 300
