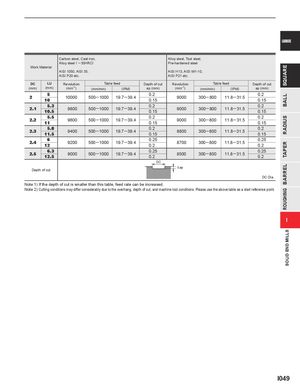

SQUAREBALLRADIUSTAPERBARRELROUGHINGSOLID END MILLS CARBIDE Carbon steel, Cast iron, Alloy steel, Tool steel, Alloy steel ( ─ 30HRC) Pre-hardened steel Work Material AISI 1050, AISI 35, AISI H13, AISI W1-10, AISI P20 etc. AISI P21 etc. DC LU Revolution Table feed Depth of cut Revolution Table feed Depth of cut (mm) (mm) (min-1) (mm/min) (IPM) ap (mm) (min-1) (mm/min) (IPM) ap (mm) 2 510 10000 500 ─ 1000 19.7 ─ 39.4 0.20.15 9000 300─ 800 11.8─ 31.5 0.20.15 2.1 5.310.5 9800 500 ─1000 19.7 ─ 39.4 0.20.15 9000 300 ─ 800 11.8─ 31.5 0.20.15 2.2 5.511 9600 500 ─1000 19.7─ 39.4 0.20.15 9000 300 ─ 800 11.8 ─ 31.5 0.20.15 2.3 5.811.5 9400 500 ─ 1000 19.7 ─39.4 0.20.15 8800 300 ─ 800 11.8─ 31.5 0.20.15 2.4 612 9200 500 ─1000 19.7 ─39.4 0.250.2 8700 300 ─ 800 11.8─ 31.5 0.250.2 2.5 6.312.5 9000 500 ─1000 19.7 ─39.4 0.250.2 8500 300─ 800 11.8 ─ 31.5 0.250.2 DC < ap Depth of cut DC:Dia. Note 1) If the depth of cut is smaller than this table, feed rate can be increased. Note 2) Cutting conditions may differ considerably due to the overhang, depth of cut, and machine tool conditions. Please use the above table as a start reference point. I I049
