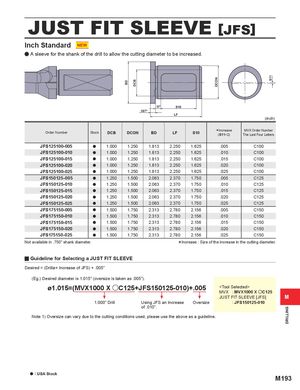

BD DCB DCON S11 DRILLING JUST FIT SLEEVE [JFS] Inch Standard a A sleeve for the shank of the drill to allow the cutting diameter to be increased. .197" S10 .197" LF (inch) Order Number Stock DCB DCON BD LF S10 *Increase(S11×2) MVX Order NumberThe Last Four Letters JFS125100-005 a 1.000 1.250 1.813 2.250 1.625 .005 C100 JFS125100-010 a 1.000 1.250 1.813 2.250 1.625 .010 C100 JFS125100-015 a 1.000 1.250 1.813 2.250 1.625 .015 C100 JFS125100-020 a 1.000 1.250 1.813 2.250 1.625 .020 C100 JFS125100-025 a 1.000 1.250 1.813 2.250 1.625 .025 C100 JFS150125-005 a 1.250 1.500 2.063 2.370 1.750 .005 C125 JFS150125-010 a 1.250 1.500 2.063 2.370 1.750 .010 C125 JFS150125-015 a 1.250 1.500 2.063 2.370 1.750 .015 C125 JFS150125-020 a 1.250 1.500 2.063 2.370 1.750 .020 C125 JFS150125-025 a 1.250 1.500 2.063 2.370 1.750 .025 C125 JFS175150-005 a 1.500 1.750 2.313 2.780 2.156 .005 C150 JFS175150-010 a 1.500 1.750 2.313 2.780 2.156 .010 C150 JFS175150-015 a 1.500 1.750 2.313 2.780 2.156 .015 C150 JFS175150-020 a 1.500 1.750 2.313 2.780 2.156 .020 C150 JFS175150-025 a 1.500 1.750 2.313 2.780 2.156 .025 C150 Not available in .750" shank diameter. *Increase : Size of the increase in the cutting diameter. y Guideline for Selecting a JUST FIT SLEEVE Desired = (Drillø+ Increase of JFS) + .005" (Eg.) Desired diameter is 1.015" (oversize is taken as .005"). ø1.015=(MVX1000 X oC125+JFS150125-010)+.005 MVX: MVX1000 X iC125 JUST FIT SLEEVE [JFS] M 1.000" Drill Using JFS an Increase Oversize : JFS150125-010 of .010". Note 1) Oversize can vary due to the cutting conditions used, please use the above as a guideline. a : USA Stock M193
