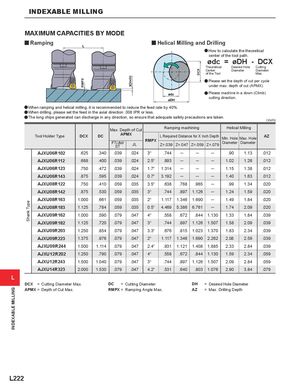

INDEXABLE MILLING Shank Type RMPX DCX INDEXABLE MILLING MAXIMUM CAPACITIES BY MODE y Ramping y Helical Milling and Drilling aHow to calculate the theoretical center of the tool path. ødc = øDH - DCX Theoretical Desired Hole Cutting Center Diameter Diameter of the Tool Max. a Please set the depth of cut per cycle under max. depth of cut (APMX). a Please machine in a down (Climb) cutting direction. aWhen ramping and helical milling, it is recommended to reduce the feed rate by 40%.aWhen drilling, please set the feed in the axial direction .008 IPR or less.aThe long chips generated can discharge in any direction, so ensure that adequate safety precautions are taken. ( inch) Max. Depth of Cut Ramping machining Helical Milling Tool Holder Type DCX DC APMXFT/JM/STJLRMPX L Required Distance for X Inch DepthZ=.039Z=.047Z=.059Z=.079Min. Hole Max. HoleDiameterDiameterAZ AJXU06R102 .625 .340 .039 .024 3° .744 ─ ─ ─ .90 1.13 .012 AJXU06R112 .688 .400 .039 .024 2.5° .893 ─ ─ ─ 1.02 1.26 .012 AJXU06R123 .750 .472 .039 .024 1.7° 1.314 ─ ─ ─ 1.15 1.38 .012 AJXU06R143 .875 .595 .039 .024 0.7° 3.192 ─ ─ ─ 1.40 1.63 .012 AJXU08R122 .750 .410 .059 .035 3.5° .638 .768 .965 ─ .99 1.34 .020 AJXU08R142 .875 .530 .059 .035 3° .744 .897 1.126 ─ 1.24 1.59 .020 AJXU08R163 1.000 .661 .059 .035 2° 1.117 1.346 1.690 ─ 1.49 1.84 .020 AJXU08R183 1.125 .784 .059 .035 0.5° 4.469 5.386 6.761 ─ 1.74 2.09 .020 AJXU09R162 1.000 .590 .079 .047 4° .558 .672 .844 1.130 1.33 1.84 .039 AJXU09R182 1.125 .720 .079 .047 3° .744 .897 1.126 1.507 1.58 2.09 .039 AJXU09R203 1.250 .854 .079 .047 3.3° .676 .815 1.023 1.370 1.83 2.34 .039 AJXU09R223 1.375 .976 .079 .047 2° 1.117 1.346 1.690 2.262 2.08 2.59 .039 AJXU09R244 1.500 1.114 .079 .047 2.4° .931 1.121 1.408 1.885 2.33 2.84 .039 AJXU12R202 1.250 .790 .079 .047 4° .558 .672 .844 1.130 1.59 2.34 .059 AJXU12R243 1.500 1.040 .079 .047 3° .744 .897 1.126 1.507 2.09 2.84 .059 AJXU14R323 2.000 1.530 .079 .047 4.2° .531 .640 .803 1.076 2.90 3.84 .079 L DCX = Cutting Diameter Max. DC = Cutting Diameter DH = Desired Hole Diameter APMX = Depth of Cut Max. RMPX = Ramping Angle Max. AZ = Max. Drilling Depth L222
