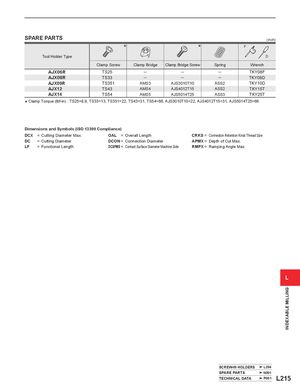

SPARE PARTS ( inch) * * F Tool Holder Type D Clamp Screw Clamp Bridge Clamp Bridge Screw Spring Wrench AJX06R TS25 ─ ─ ─ TKY08F AJX08R TS33 ─ ─ ─ TKY08D AJX09R TS351 AMS3 AJS3010T10 ASS2 TKY10D AJX12 TS43 AMS4 AJS4012T15 ASS2 TKY15T AJX14 TS54 AMS5 AJS5014T25 ASS3 TKY25T * Clamp Torque (lbf-in) : TS25=8.9, TS33=13, TS351=22, TS43=31, TS54=66, AJS3010T10=22, AJS4012T15=31, AJS5014T25=66 Dimensions and Symbols (ISO 13399 Compliance) DCX = Cutting Diameter Max. OAL = Overall Length CRKS = Connection Retention Knob Thread Size DC = Cutting Diameter DCON = Connection Diameter APMX = Depth of Cut Max. LF = Functional Length DCSFMS = Contact Surface Diameter Machine Side RMPX = Ramping Angle Max. L SCREW-IN HOLDERS L294 SPARE PARTS N001 TECHNICAL DATA P001 L215 INDEXABLE MILLING
