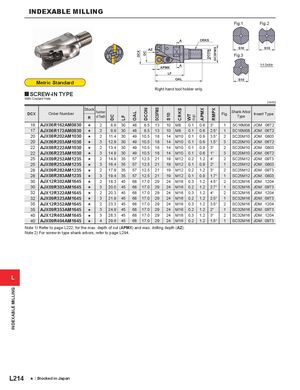

Общий каталог Mitsubishi 2020 - 2021 - страница 1389

Предыдущая страница Следующая страница

Навигация

INDEXABLE MILLING DC LF OAL DCX DCDCON DCSFMS S10 CRKS WT (kg) APMX DCON DCSFMSRMPX INDEXABLE MILLING Fig.1 Fig.2 A CRKS AZ * S10 S10 Fig.3 APMX A A-A Section LF Metric Standard OAL S10 Right hand tool holder only. y SCREW-IN TYPE With Coolant Hole ( mm) DCX Order Number Stock NumberRof Teeth Fig. Shank ArborTypeInsert Type 16 AJX06R162AM0830 s 2 8.9 30 48 8.5 13 10 M8 0.1 0.6 3° 1 SC16M08 JOMp06T2 17 AJX06R172AM0830 s 2 9.9 30 48 8.5 13 10 M8 0.1 0.6 2.5° 1 SC16M08 JOMp06T2 20 AJX08R202AM1030 s 2 11.4 30 49 10.5 18 14 M10 0.1 0.9 3.5° 2 SC20M10 JOMp0803 20 AJX06R203AM1030 s 3 12.9 30 49 10.5 18 14 M10 0.1 0.6 1.5° 3 SC20M10 JOMp06T2 22 AJX08R222AM1030 s 2 13.4 30 49 10.5 18 14 M10 0.1 0.9 3° 2 SC20M10 JOMp0803 22 AJX06R223AM1030 s 3 14.9 30 49 10.5 18 14 M10 0.1 0.6 1° 3 SC20M10 JOMp06T2 25 AJX09R252AM1235 s 2 14.9 35 57 12.5 21 19 M12 0.2 1.2 4° 2 SC25M12 JDMp09T3 25 AJX08R253AM1235 s 3 16.4 35 57 12.5 21 19 M12 0.1 0.9 2° 1 SC25M12 JOMp0803 28 AJX09R282AM1235 s 2 17.9 35 57 12.5 21 19 M12 0.2 1.2 3° 2 SC25M12 JDMp09T3 28 AJX08R283AM1235 s 3 19.4 35 57 12.5 21 19 M12 0.1 0.9 1.7° 1 SC25M12 JOMp0803 30 AJX12R302AM1645 s 2 18.3 45 68 17.0 29 24 M16 0.3 1.2 4.5° 2 SC32M16 JDMp1204 30 AJX09R303AM1645 s 3 20.0 45 68 17.0 29 24 M16 0.2 1.2 2.7° 1 SC32M16 JDMp09T3 32 AJX12R322AM1645 s 2 20.3 45 68 17.0 29 24 M16 0.3 1.2 4° 2 SC32M16 JDMp1204 32 AJX09R323AM1645 s 3 21.9 45 68 17.0 29 24 M16 0.2 1.2 2.5° 1 SC32M16 JDMp09T3 35 AJX12R352AM1645 s 2 23.3 45 68 17.0 29 24 M16 0.3 1.2 3.5° 2 SC32M16 JDMp1204 35 AJX09R353AM1645 s 3 24.9 45 68 17.0 29 24 M16 0.2 1.2 2° 1 SC32M16 JDMp09T3 40 AJX12R403AM1645 s 3 28.3 45 68 17.0 29 24 M16 0.3 1.2 3° 2 SC32M16 JDMp1204 40 AJX09R404AM1645 s 4 29.9 45 68 17.0 29 24 M16 0.2 1.2 1.5° 1 SC32M16 JDMp09T3 Note 1) Refer to page L222, for the max. depth of cut (APMX) and max. drilling depth (AZ). Note 2) For screw-in type shank arbors, refer to page L294. L L214 s : Stocked in Japan
