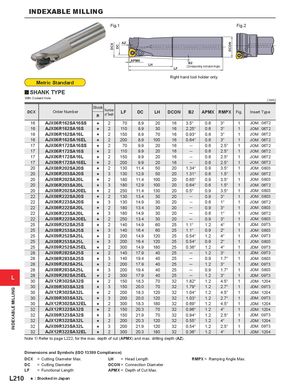

INDEXABLE MILLING DCX DC DCON INDEXABLE MILLING Fig.1 Fig.2 AZ APMX*2 LH B2LF(Corresponding Inclination Angle) Right hand tool holder only. Metric Standard y SHANK TYPE With Coolant Hole ( mm) DCX Order Number Stock NumberRof Teeth LF DC LH DCON B2 APMX RMPX Fig. Insert Type 16 AJX06R162SA16SS s 2 70 8.9 20 16 3.5° 0.6 3° 1 JOMp06T2 16 AJX06R162SA16S s 2 110 8.9 30 16 2.25° 0.6 3° 1 JOMp06T2 16 AJX06R162SA16L s 2 150 8.9 70 16 0.93° 0.6 3° 1 JOMp06T2 16 AJX06R162SA16EL s 2 200 8.9 100 16 0.64° 0.6 3° 1 JOMp06T2 17 AJX06R172SA16SS s 2 70 9.9 20 16 ─ 0.6 2.5° 1 JOMp06T2 17 AJX06R172SA16S s 2 110 9.9 20 16 ─ 0.6 2.5° 1 JOMp06T2 17 AJX06R172SA16L s 2 150 9.9 20 16 ─ 0.6 2.5° 1 JOMp06T2 17 AJX06R172SA16EL s 2 200 9.9 20 16 ─ 0.6 2.5° 1 JOMp06T2 20 AJX08R202SA20S s 2 130 11.4 50 20 1.34° 0.9 3.5° 1 JOMp0803 20 AJX06R203SA20S s 3 130 12.9 50 20 1.31° 0.6 1.5° 1 JOMp06T2 20 AJX08R202SA20L s 2 180 11.4 100 20 0.65° 0.9 3.5° 1 JOMp0803 20 AJX06R203SA20L s 3 180 12.9 100 20 0.64° 0.6 1.5° 1 JOMp06T2 20 AJX08R202SA20EL s 2 250 11.4 130 20 0.5° 0.9 3.5° 1 JOMp0803 22 AJX08R222SA20S s 2 130 13.4 30 20 ─ 0.9 3° 1 JOMp0803 22 AJX06R223SA20S s 3 130 14.9 30 20 ─ 0.6 1° 1 JOMp06T2 22 AJX08R222SA20L s 2 180 13.4 30 20 ─ 0.9 3° 1 JOMp0803 22 AJX06R223SA20L s 3 180 14.9 30 20 ─ 0.6 1° 1 JOMp06T2 22 AJX08R222SA20EL s 2 250 13.4 30 20 ─ 0.9 3° 1 JOMp0803 25 AJX09R252SA25S s 2 140 14.9 60 25 1.1° 1.2 4° 1 JDMp09T3 25 AJX08R253SA25S s 3 140 16.4 60 25 1.1° 0.9 2° 1 JOMp0803 25 AJX09R252SA25L s 2 200 14.9 120 25 0.54° 1.2 4° 1 JDMp09T3 25 AJX08R253SA25L s 3 200 16.4 120 25 0.54° 0.9 2° 1 JOMp0803 25 AJX09R252SA25EL s 2 300 14.9 180 25 0.36° 1.2 4° 1 JDMp09T3 28 AJX09R282SA25S s 2 140 17.9 40 25 ─ 1.2 3° 1 JDMp09T3 28 AJX08R283SA25S s 3 140 19.4 40 25 ─ 0.9 1.7° 1 JOMp0803 28 AJX09R282SA25L s 2 200 17.9 40 25 ─ 1.2 3° 1 JDMp09T3 28 AJX08R283SA25L s 3 200 19.4 40 25 ─ 0.9 1.7° 1 JOMp0803 L 28 AJX09R282SA25EL s 2 300 17.9 40 25 ─ 1.2 3° 1 JDMp09T330AJX12R302SA32Ss215018.370321.82°1.24.5°1JDMp1204 30 AJX09R303SA32S s 3 150 20.0 70 32 1.79° 1.2 2.7° 1 JDMp09T3 30 AJX12R302SA32L s 2 200 18.3 120 32 1.04° 1.2 4.5° 1 JDMp1204 30 AJX09R303SA32L s 3 200 20.0 120 32 1.03° 1.2 2.7° 1 JDMp09T3 30 AJX12R302SA32EL s 2 300 18.3 180 32 0.69° 1.2 4.5° 1 JDMp1204 32 AJX12R322SA32S s 2 150 20.3 70 32 0.96° 1.2 4° 1 JDMp1204 32 AJX09R323SA32S s 3 150 21.9 70 32 0.94° 1.2 2.5° 1 JDMp09T3 32 AJX12R322SA32L s 2 200 20.3 120 32 0.55° 1.2 4° 1 JDMp1204 32 AJX09R323SA32L s 3 200 21.9 120 32 0.54° 1.2 2.5° 1 JDMp09T3 32 AJX12R322SA32EL s 2 300 20.3 180 32 0.36° 1.2 4° 1 JDMp1204 Note 1) Refer to page L222, for the max. depth of cut (APMX) and max. drilling depth (AZ). Dimensions and Symbols (ISO 13399 Compliance) DCX = Cutting Diameter Max. LH = Head Length RMPX = Ramping Angle Max. DC = Cutting Diameter DCON = Connection Diameter LF = Functional Length APMX = Depth of Cut Max. L210 s : Stocked in Japan
