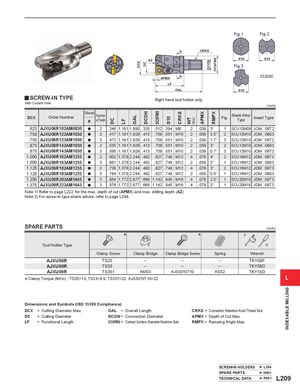

Общий каталог Mitsubishi 2020 - 2021 - страница 1384

Предыдущая страница Следующая страница

Навигация

DC LF OAL DCX DCDCON DCSFMS S10 CRKS WT (lbs) APMX DCON DCSFMSRMPX INDEXABLE MILLING Fig.1 Fig.2 A CRKS AZ * S10 S10 Fig.3 APMX A A-A Section LF OAL S10 y SCREW-IN TYPE Right hand tool holder only. With Coolant Hole ( inch) DCX Order Number Stock NumberRof Teeth Fig. Shank ArborTypeInsert Type .625 AJXU06R102AM0830 a 2 .346 1.181 1.890 .335 .512 .394 M8 .2 .039 3° 1 SCU10M08 JOMp06T2 .750 AJXU08R122AM1030 a 2 .417 1.181 1.929 .413 .709 .551 M10 .2 .059 3.5° 2 SCU12M10 JOMp0803 .750 AJXU06R123AM1030 a 3 .472 1.181 1.929 .413 .709 .551 M10 .2 .039 1.7° 3 SCU12M10 JOMp06T2 .875 AJXU08R142AM1030 a 2 .535 1.181 1.929 .413 .709 .551 M10 .2 .059 3° 2 SCU12M10 JOMp0803 .875 AJXU06R143AM1030 a 3 .595 1.181 1.929 .413 .709 .551 M10 .2 .039 0.7° 3 SCU12M10 JOMp06T2 1.000 AJXU09R162AM1235 a 2 .602 1.378 2.244 .492 .827 .748 M12 .4 .079 4° 2 SCU16M12 JDMp09T3 1.000 AJXU08R163AM1235 a 3 .661 1.378 2.244 .492 .827 .748 M12 .2 .059 2° 1 SCU16M12 JOMp0803 1.125 AJXU09R182AM1235 a 2 .728 1.378 2.244 .492 .827 .748 M12 .4 .079 3° 2 SCU16M12 JDMp09T3 1.125 AJXU08R183AM1235 a 3 .784 1.378 2.244 .492 .827 .748 M12 .2 .059 0.5° 1 SCU16M12 JOMp0803 1.250 AJXU09R203AM1645 a 3 .854 1.772 2.677 .669 1.142 .945 M16 .4 .079 2.5° 1 SCU20M16 JDMp09T3 1.375 AJXU09R223AM1645 a 3 .976 1.772 2.677 .669 1.142 .945 M16 .4 .079 2° 1 SCU20M16 JDMp09T3 Note 1) Refer to page L222, for the max. depth of cut (APMX) and max. drilling depth (AZ). Note 2) For screw-in type shank arbors, refer to page L294. SPARE PARTS ( inch) * * F Tool Holder Type D Clamp Screw Clamp Bridge Clamp Bridge Screw Spring Wrench AJXU06R TS25 ─ ─ ─ TKY08F AJXU08R TS33 ─ ─ ─ TKY08D AJXU09R TS351 AMS3 AJS3010T10 ASS2 TKY10D * Clamp Torque (lbf-in) : TS25=13, TS33=8.9, TS351=22, AJS3010T10=22 L Dimensions and Symbols (ISO 13399 Compliance) DCX = Cutting Diameter Max. OAL = Overall Length CRKS = Connection Retention Knob Thread Size DC = Cutting Diameter DCON = Connection Diameter APMX = Depth of Cut Max. LF = Functional Length DCSFMS = Contact Surface Diameter Machine Side RMPX = Ramping Angle Max. SCREW-IN HOLDERS L294 SPARE PARTS N001 TECHNICAL DATA P001 L209
