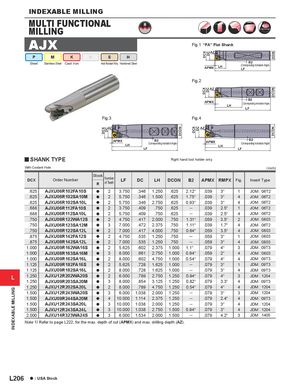

INDEXABLE MILLING DCX DC DCON DCX DC DCXDCX DCDC DCONDCONDCON INDEXABLE MILLING MULTI FUNCTIONAL MILLING AJX Fig.1 “FA” Flat Shank AZ P M K N S H Steel Stainless Steel Cast Iron Heat Resistant Alloy Hardened Steel B2APMXLH(Corresponding Inclination Angle)LF Fig.2 AZ APMX B2LH(Corresponding Inclination Angle) LF Fig.3 Fig.4 AZ AZ APMX LH B2(Corresponding Inclination Angle) APMX B2(Corresponding Inclination Angle)LH LF LF y SHANK TYPE Right hand tool holder only. With Coolant Hole ( inch) DCX Order Number Stock NumberRof Teeth LF DC LH DCON B2 APMX RMPX Fig. Insert Type .625 AJXU06R102FA10S a 2 3.750 .346 1.250 .625 2.12° .039 3° 1 JOMp06T2 .625 AJXU06R102SA10M a 2 5.750 .346 1.500 .625 1.75° .039 3° 4 JOMp06T2 .625 AJXU06R102SA10L a 2 5.750 .346 2.750 .625 0.93° .039 3° 4 JOMp06T2 .688 AJXU06R112FA10S a 2 3.750 .409 .750 .625 ─ .039 2.5° 1 JOMp06T2 .688 AJXU06R112SA10L a 2 5.750 .409 .750 .625 ─ .039 2.5° 4 JOMp06T2 .750 AJXU08R122WA12S a 2 4.750 .417 2.000 .750 1.31° .059 3.5° 2 JOMp0803 .750 AJXU06R123SA12M a 3 7.000 .472 2.375 .750 1.11° .039 1.7° 4 JOMp06T2 .750 AJXU08R122SA12L a 2 7.000 .417 4.000 .750 0.64° .059 3.5° 4 JOMp0803 .875 AJXU08R142FA12S a 2 4.750 .535 1.250 .750 ─ .059 3° 1 JOMp0803 .875 AJXU08R142SA12L a 2 7.000 .535 1.250 .750 ─ .059 3° 4 JOMp0803 1.000 AJXU09R162WA16S a 2 5.625 .602 2.375 1.000 1.1° .079 4° 3 JDMp09T3 1.000 AJXU08R163SA16M a 3 8.000 .661 2.750 1.000 0.94° .059 2° 4 JOMp0803 1.000 AJXU09R162SA16L a 2 8.000 .602 4.750 1.000 0.54° .079 4° 4 JDMp09T3 1.125 AJXU09R182FA16S a 2 5.625 .728 1.625 1.000 ─ .079 3° 1 JDMp09T3 1.125 AJXU09R182SA16L a 2 8.000 .728 1.625 1.000 ─ .079 3° 4 JDMp09T3 L 1.250 AJXU12R202WA20S a 2 6.000 .789 2.750 1.250 0.94° .079 4° 3 JDMp1204 1.250 AJXU09R203SA20M a 3 8.000 .854 3.125 1.250 0.82° .079 3.3° 4 JDMp09T3 1.250 AJXU12R202SA20L a 2 8.000 .789 4.750 1.250 0.54° .079 4° 4 JDMp1204 1.500 AJXU12R243WA20S a 3 6.000 1.038 2.000 1.250 ─ .079 3° 3 JDMp1204 1.500 AJXU09R244SA20M a 4 10.000 1.114 2.375 1.250 ─ .079 2.4° 4 JDMp09T3 1.500 AJXU12R243SA20L a 3 10.000 1.038 2.000 1.250 ─ .079 3° 4 JDMp1204 1.500 AJXU12R243SA24L a 3 10.000 1.038 2.750 1.500 0.94° .079 3° 4 JDMp1204 2.000 AJXU14R323WA24S a 3 6.000 1.534 2.000 1.500 ─ .079 4.2° 3 JDMp1405 Note 1) Refer to page L222, for the max. depth of cut (APMX) and max. drilling depth (AZ). L206 a : USA Stock
