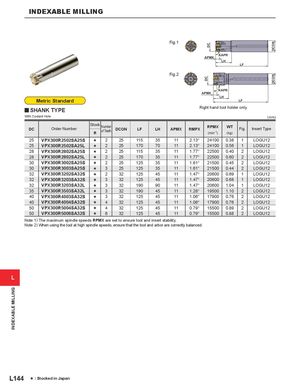

INDEXABLE MILLING DCDC DCONDCON INDEXABLE MILLING Fig.1 APMX KAPR LH LF Fig.2 KAPR APMX LH Metric Standard LF y SHANK TYPE Right hand tool holder only. With Coolant Hole ( mm) DC Order Number Stock NumberRof TeethDCON LF LH APMX RMPX RPMX WT Fig. Insert Type(min-1)(kg) 25 VPX300R2502SA25S s 2 25 115 35 11 2.13° 24100 0.38 1 LOGU12 25 VPX300R2502SA25L s 2 25 170 70 11 2.13° 24100 0.56 1 LOGU12 28 VPX300R2802SA25S s 2 25 115 35 11 1.77° 22500 0.40 2 LOGU12 28 VPX300R2802SA25L s 2 25 170 35 11 1.77° 22500 0.60 2 LOGU12 30 VPX300R3002SA25S s 2 25 125 35 11 1.61° 21500 0.45 2 LOGU12 30 VPX300R3003SA25S s 3 25 125 35 11 1.61° 21500 0.44 2 LOGU12 32 VPX300R3202SA32S s 2 32 125 45 11 1.47° 20600 0.69 1 LOGU12 32 VPX300R3203SA32S s 3 32 125 45 11 1.47° 20600 0.68 1 LOGU12 32 VPX300R3203SA32L s 3 32 190 90 11 1.47° 20600 1.04 1 LOGU12 35 VPX300R3503SA32L s 3 32 190 45 11 1.28° 19500 1.10 2 LOGU12 40 VPX300R4003SA32S s 3 32 125 45 11 1.06° 17900 0.76 2 LOGU12 40 VPX300R4004SA32S s 4 32 125 45 11 1.06° 17900 0.76 2 LOGU12 50 VPX300R5004SA32S s 4 32 125 45 11 0.79° 15500 0.89 2 LOGU12 50 VPX300R5006SA32S s 6 32 125 45 11 0.79° 15500 0.88 2 LOGU12 Note 1) The maximum spindle speeds RPMX are set to ensure tool and insert stability. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. L L144 s : Stocked in Japan
