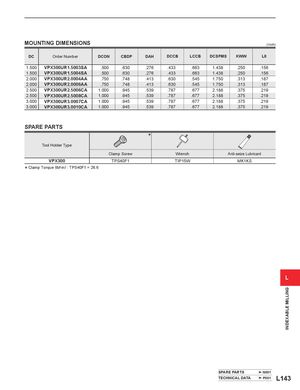

MOUNTING DIMENSIONS ( inch) DC Order Number DCON CBDP DAH DCCB LCCB DCSFMS KWW L8 1.500 VPX300UR1.5003SA .500 .630 .276 .433 .663 1.438 .250 .156 1.500 VPX300UR1.5004SA .500 .630 .276 .433 .663 1.438 .250 .156 2.000 VPX300UR2.0004AA .750 .748 .413 .630 .545 1.750 .313 .187 2.000 VPX300UR2.0006AA .750 .748 .413 .630 .545 1.750 .313 .187 2.500 VPX300UR2.5006CA 1.000 .945 .539 .787 .677 2.188 .375 .219 2.500 VPX300UR2.5008CA 1.000 .945 .539 .787 .677 2.188 .375 .219 3.000 VPX300UR3.0007CA 1.000 .945 .539 .787 .677 2.188 .375 .219 3.000 VPX300UR3.0010CA 1.000 .945 .539 .787 .677 2.188 .375 .219 SPARE PARTS * Tool Holder Type Clamp Screw Wrench Anti-seize Lubricant VPX300 TPS40F1 TIP15W MK1KS * Clamp Torque (lbf-in) : TPS40F1 = 26.6 L SPARE PARTS N001 TECHNICAL DATA P001 L143 INDEXABLE MILLING
