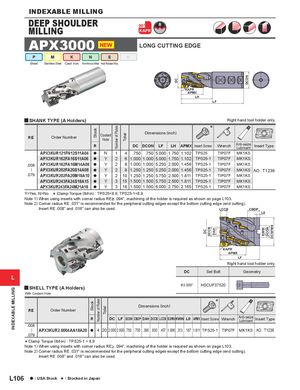

INDEXABLE MILLING ── Stock Stock Number of Flutes Total Number of Flutes Total DC DC DCCB DAH DCON KWW DCON DCSFMS INDEXABLE MILLING DEEP SHOULDER 90° MILLING KAPR APX3000 LONG CUTTING EDGE P M K N S H Steel Stainless Steel Cast Iron Non-ferrous Metal Heat Resistant Alloy KAPR APMX LH LF y SHANK TYPE (A Holders) Right hand tool holder only. * RE Order Number Coolant Hole Dimensions (inch) R DC DCON LF LH APMX Insert Screw Wrench Anti-seizeLubricantInsert Type APX3KUR121FN12S11A04 a N 1 4 .750 .750 5.000 1.750 1.102 TPS25 TIP07F MK1KS APX3KUR162FA16S11A06 a Y 2 6 1.000 1.000 5.000 1.750 1.102 TPS25-1 TIP07F MK1KS .008 APX3KUR162FA16M14A08 a Y 2 8 1.000 1.000 5.250 2.000 1.456 TPS25-1 TIP07F MK1KS APX3KUR202FA20S14A08 a Y 2 8 1.250 1.250 5.250 2.000 1.456 TPS25-1 TIP07F MK1KS AOpT1236 .079 APX3KUR202FA20M18A10 a Y 2 10 1.250 1.250 5.750 2.500 1.811 TPS25-1 TIP07F MK1KS APX3KUR243FA24S18A15 a Y 3 15 1.500 1.500 5.750 2.500 1.811 TPS25-1 TIP07F MK1KS APX3KUR243FA24M21A18 a Y 3 18 1.500 1.500 6.000 2.750 2.165 TPS25-1 TIP07F MK1KS Y=Yes, Note 1) N=No When * Clamp Torque (lbf-in) : TPS25=8.9, TPS25-1=8.9 using inserts with corner radius RE>.094", machining of the holder is required as shown on page L103. Note 2) Corner radius RE .031" is recommended for the peripheral cutting edges except the bottom cutting edge (end cutting). Insert RE .008" and .016" can also be used. LCCB CBDP L8 KAPR APMX LF Right hand tool holder only. DC Set Bolt Geometry L y SHELL TYPE (A Holders) & 2.000" HSCUF37520 With Coolant Hole Dimensions (inch) * RE Order Number R DC LF DCON CBDP DAH DCCB LCCB DCSFMS KWW L8 APMX Insert Screw Wrench Anti-seizeLubricantInsert Type .008 APX3KUR2.0004AA18A20 a 4 20 2.000 2.500 .750 .750 .395 .630 .457 1.936 .313 .187 1.811 TPS25-1 TIP07F MK1KS AOpT1236 .079 * Clamp Torque (lbf-in) : TPS25-1 = 8.9 Note 1) When using inserts with corner radius RE>.094", machining of the holder is required as shown on page L103. Note 2) Corner radius RE .031" is recommended for the peripheral cutting edges except the bottom cutting edge (end cutting). Insert RE .008" and .016" can also be used. L106 a : USA Stock s : Stocked in Japan
